£2.95
excl. VAT
£3.54 incl. VAT
£3.54
incl. VAT
£2.95 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | On or in internal combustion engines, gearboxes and other heat-generating vehicle components, Lights, For AWG cables 16 to 24 or 1.00 mm² to 0.2 mm² |
|---|---|
| Benefits | Easy mounting |
| Connection 1, type - male/female | Male |
| Consists of | Individual components, Plug self-assembly |
| Content in sale unit | 1 pcs |
| Details | Modular design |
| DIN standard | 40050 |

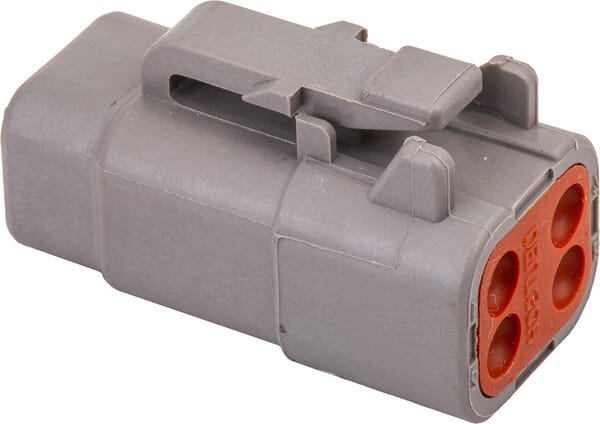

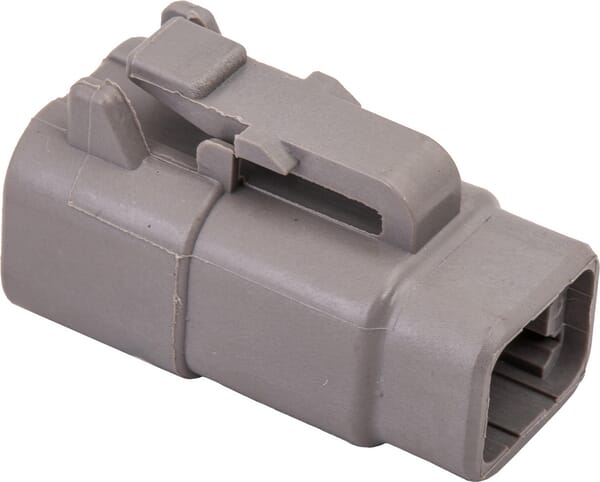

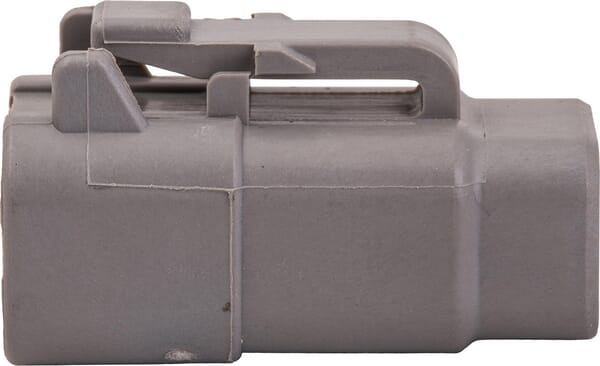

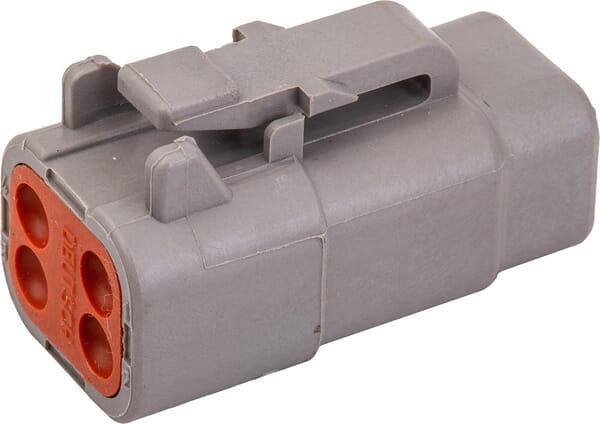

| Long description | Deutsch - DTM suitable for on or around combustion engines, transmissions and other heat-producing vehicle parts. |
| Max working temperature | 125 °C |
| Min working temperature | -55 °C |
| Nominal voltage | 1500 V |
| Number of poles | 4 |
| Product details | Lighting, For cables AWG 16 to 24 or 1.00mm² to 0.2mm², Thermoplastic housing, Silicone seal, Integrated cable seal, Key type A grey, B black, C green or D brown, 7.5 amps at 125°C constant load, Pin size 20 |
| Properties | Thermoplastic housing, Silicone seal, Integrated cable seal, Encoding type A: grey, B: black, C: green, D: brown, 7.5 ampere at 125°C continuous use, Pin size: 20 |
| Pros | Modular design, Easy to assemble, Separate components, Assemble plugs yourself |
| Protection class IP | 69, 20, 6K9K |
| Series | DTM |
| Unit | Each |
Logistics
| EAN | 8719607058155 |
|---|---|
| Unit of measure | EA |
| Weight | 4 g |
| Dimensions | 30 × 17 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000250338
TE Connectivity DEUTSCH Plug housing male, black, 12 poles Series DTM (1x), Deutsch DSDTM0612SB
£5.81 excl.
£6.97 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250490

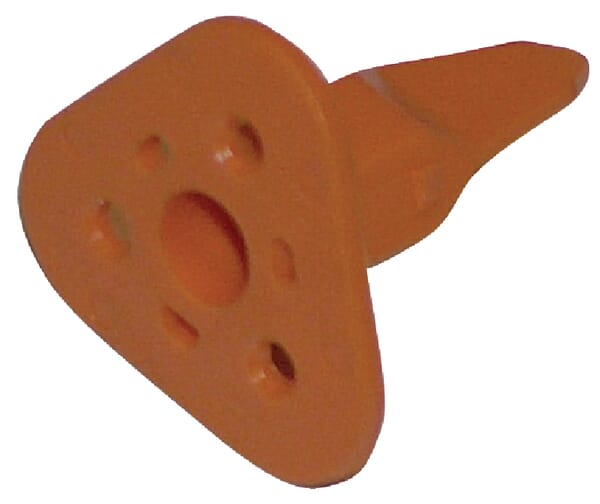

TE Connectivity DEUTSCH Connector locking device 3 P. Female DSW3S
£0.16 excl.
£0.19 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000249825
TE Connectivity DEUTSCH Tools Extract 04 DS114009ZZ
£8.97 excl.
£10.76 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250318

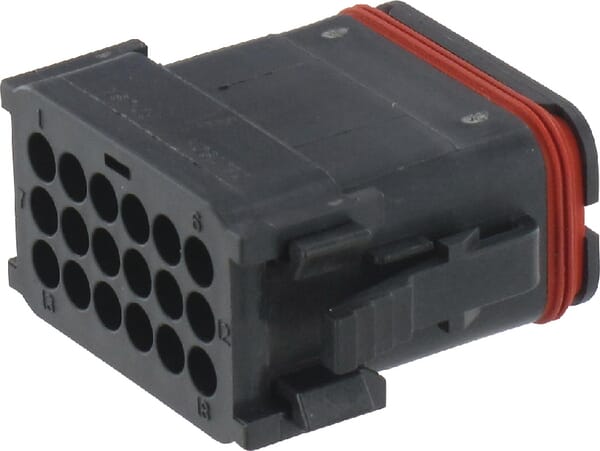

TE Connectivity DEUTSCH Plug housing 18 P. Female DT DSDT1618SB
£48.47 excl.
£58.16 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250495

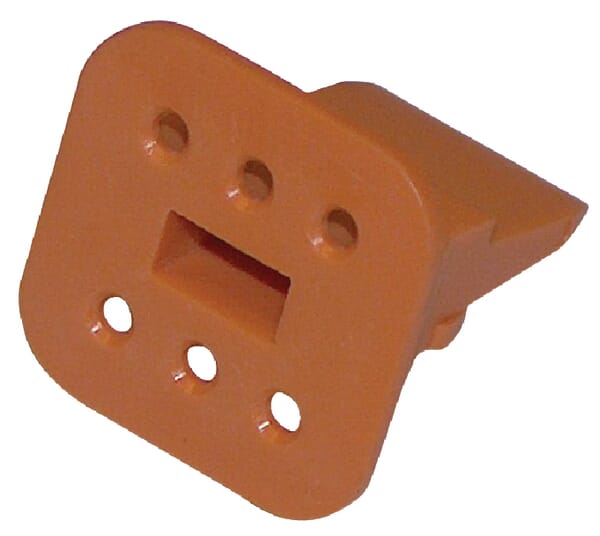

TE Connectivity DEUTSCH Connector locking device 6 P. Female DSW6S
£0.22 excl.
£0.26 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250365

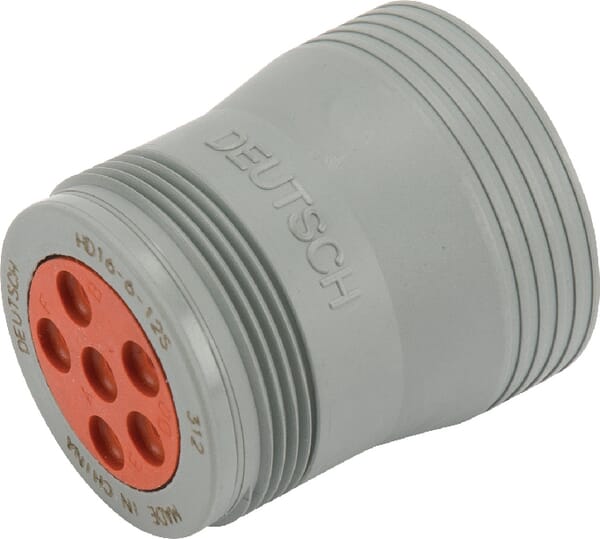

TE Connectivity DEUTSCH HD10 6 Pin plug DSHD16612S
