£995.45
excl. VAT
£1,194.54 incl. VAT
£1,194.54
incl. VAT
£995.45 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Big balers, Round balers, Mowers |
|---|---|
| Benefits | Torque retention, Smooth transition, Easier coupling when PTO shaft is braked, Wide range of applications |
| Clutch type code | FK96/4L |
| Connection locking type | Collar lock |
| Cross cap diameter | 32 mm |
| Cross length | 86 mm |
| Details | Combination of freewheel and friction disc clutch, Absorbs peak loads for short periods, Protection for subsequent mass, Max. torque adjustable via circlip |

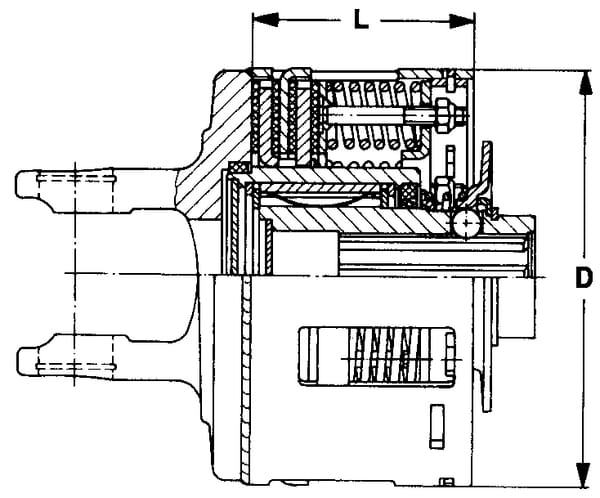

| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 90 mm |

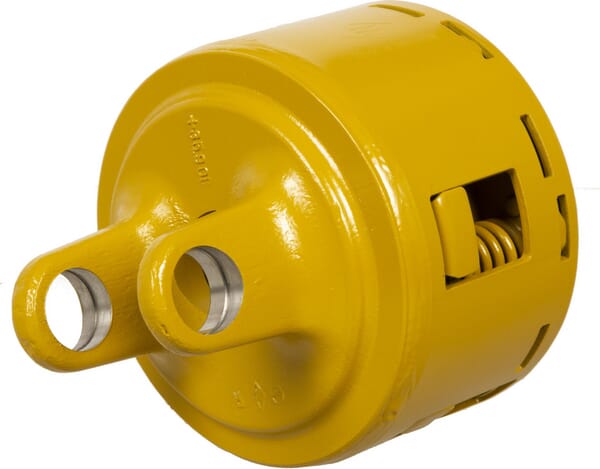

| Long description | Friction and overrunning clutches with spring pack FK96 / 4 cpl. 2400, 2500 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1200 N·m |
| Original number equivalent | 1177160 |
| Properties | Depending on the direction of rotation, Power transmission via friction discs, No noise during friction, Noise when freewheeling, Suitable as a starting clutch |
| Shaft size code | W2400 |
| Suitable for machine/vehicle brand | Claas, Matsui |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | 8435194185738 |
|---|---|
| Unit of measure | EA |
| Weight | 11370 g |
| Dimensions | 210 × 174 × 174 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000084032

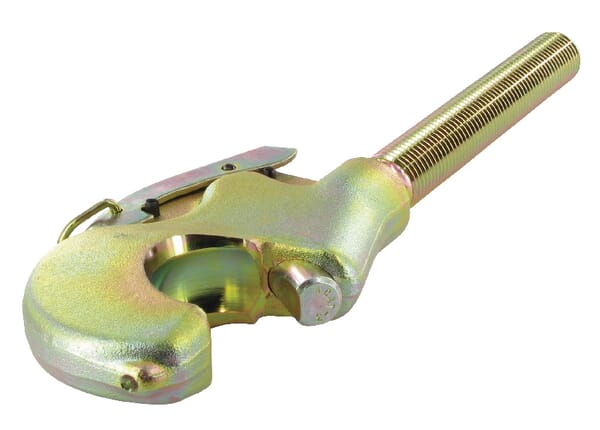

Walterscheid Toplink hook cat. 3/2 305286
£413.11 excl.
£495.73 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000143565

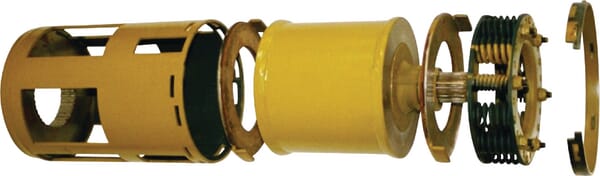

Walterscheid Driver/friction disc EK96-W 5634102
£127.09 excl.
£152.51 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000034046
Walterscheid Spring set 1176997
£264.00 excl.
£316.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000152502

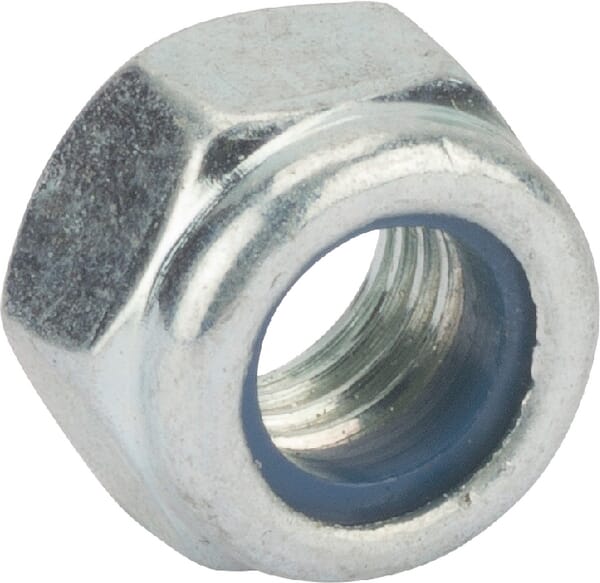

Walterscheid Nut 606001
