£26.09
excl. VAT
£31.31 incl. VAT
£31.31
incl. VAT
£26.09 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Bearing type | Roller |
|---|---|
| Body material | Steel |
| Dynamic load capacity | 250 kg |
| EN Standard | 12532 |
| Fitting type | Plate fitting |
| Max working temperature | 80 °C |
| Min working temperature | -40 °C |

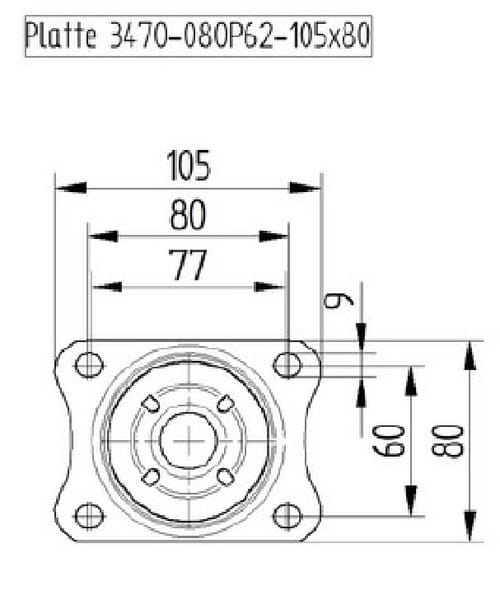

| Mounting holes diameter | 9 mm |
| Mounting holes distance | 60-60 mm |
| Mounting holes distance - length side | 77-80 mm |
| Offset | 40 mm |
| Plate length | 105 mm |
| Plate width | 80 mm |
| Static load capacity | 500 kg |
| Swivel radius | 123 mm |

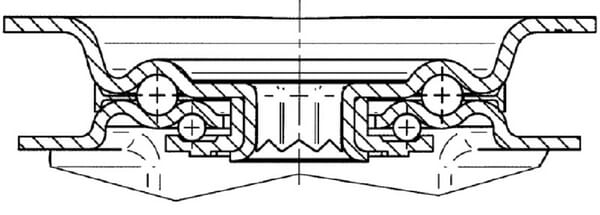

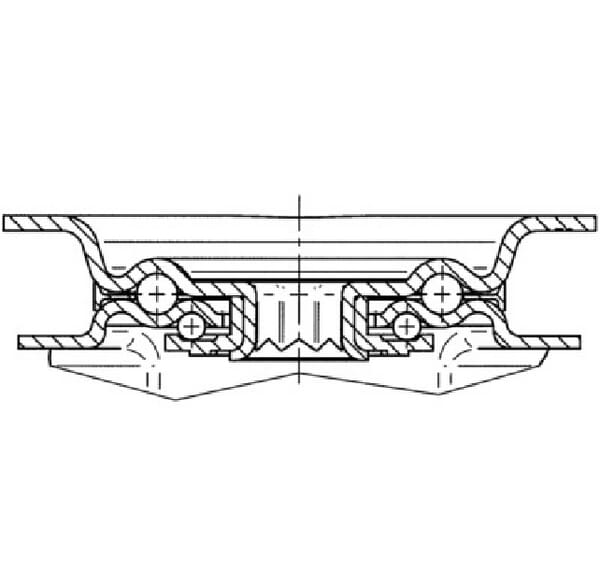

| Technical info | Swivel castor with total lock, tail end of castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting. Wheel centre made of Polyamide, with threadguards, roller bearing |
| Total height | 155 mm |
| Unit | Each |
| Weight | 1.169 kg |
| Wheel diameter | 125 mm |
| Wheel material | Polyamide |
| Wheels type | Swivel wheel |
| Wheel width | 40 mm |
| With break | Yes |
Logistics
| EAN | 40315820505304031582306095 |
|---|---|
| Unit of measure | EA |
| Weight | 1030 g |
| Dimensions | 174 × 154 × 85 mm |
