Product details
| Attachment machine side | Shear bolt clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | KB61/20 |
| Connection outside diameter machine side inch and splines | 1.3/4-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4GA |
| Length | 1210 mm |
| Locking type by machine side | Clamp bolt (interfering) |
| Locking type by tractor side | Automatic collar lock |
| Max. clutch torque | 2920 N·m |
| Max static torque | 6000 N·m |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 117 kW |
| Power 540 rpm | 76 kW |
| Profile tube shape | Star |
| Protection type | PG25 |
| Size code | PWE 580 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 38900 g |
| Dimensions | 1 × 1 × 1 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000342465
Walterscheid Wide angle PTO shaft PWE580 L:1210mm with shearbolt clutch PWE5801210Z20KB61
£2,201.01 excl.
£2,641.21 incl.
In stock
Expected to ship on Monday 21 September
Free shipping

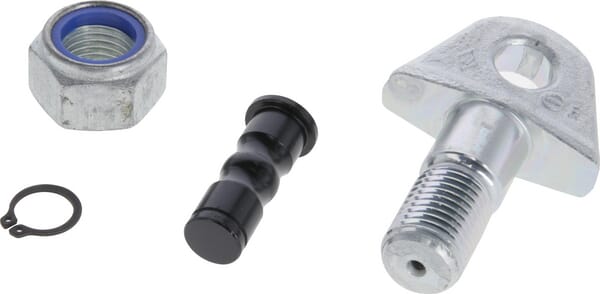

BPA000065066
Walterscheid Agraset AG 376 201035
£154.38 excl.
£185.26 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

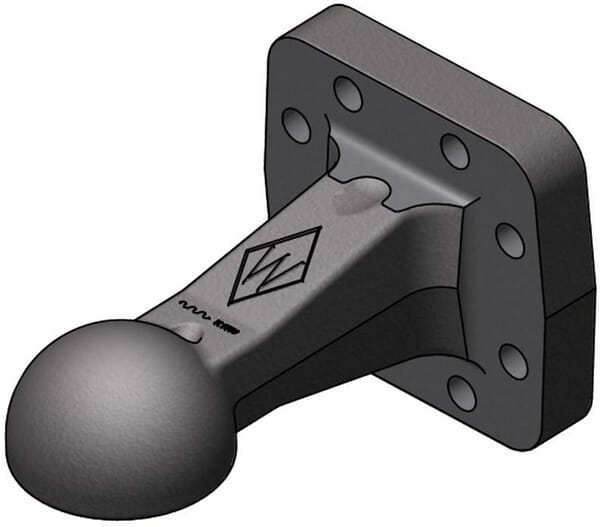

BPA000178362
Walterscheid Ball coupling 80mm hitch eye with flange 8005200
£703.37 excl.
£844.04 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

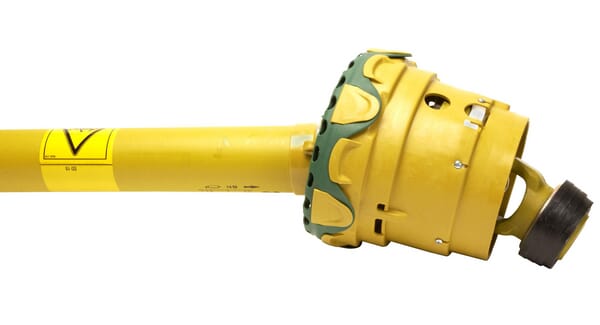

BPA000342528
Walterscheid Wide angle PTO half shaft inner PWZ5801210IZ20
£1,229.76 excl.
£1,475.71 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400719
Walterscheid PTO shaft W2100 L: 1210mm, W21001210
£417.26 excl.
£500.71 incl.
In stock
Expected to ship on Friday 18 September

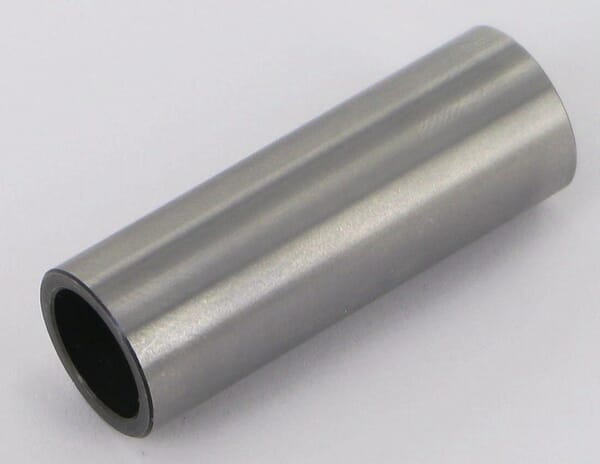

BPA000053388
