£113.43
excl. VAT
£136.12 incl. VAT
£136.12
incl. VAT
£113.43 excl. VAT
Free shipping
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 2, thread diameter | 3/8 Inch |
|---|---|
| Connection 2, thread length | 17 mm |
| Connection thread diameter | M25 |
| Connection thread length | 13 mm |
| Connection thread pitch | 1.50 mm |
| DTotal height | 103 mm |
| Max. flow rate | 25 l/min |
| Max working pressure | 250 BAR |
| Mounting possibility | Suited for in-line mounting |
| Sealing material | Viton |

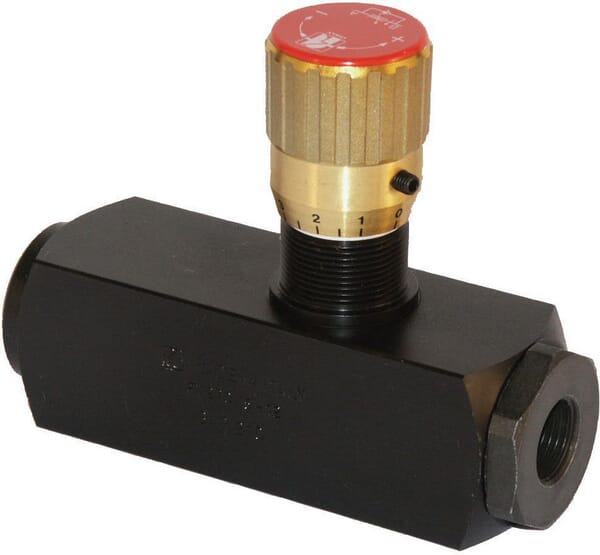

| Technical info | These valves are fitted with a graduated turning knob, which is standard. Independent of the load, the pressure compensator provides a constant volume flow. |
| Total width (diameter) | 110.5 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 964 g |
| Dimensions | 175 × 105 × 45 mm |
| Dangerous goods | No |
