£2.01
excl. VAT
£2.41 incl. VAT
£2.41
incl. VAT
£2.01 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Application range | PVC-U fittings are not suitable for compressed air lines! |
|---|---|

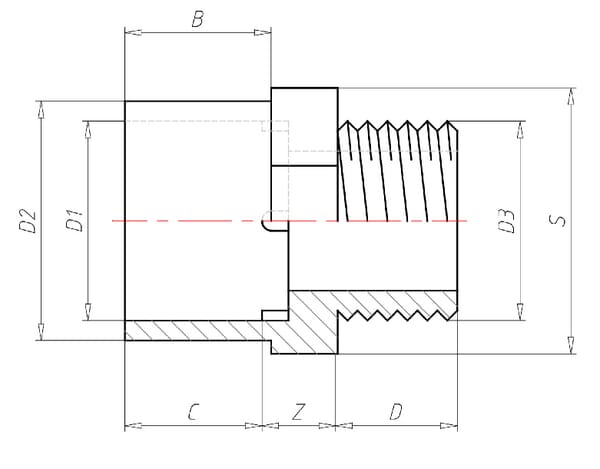

| BConnection centre to insert distance | 26 mm |
| BConnection no 1 length | 26 mm |
| Connection 1, type | Glued |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 thread length | 21 mm |
| D1Inside diameter | 40 mm |
| D2Connection no 1 diameter | 50 mm |
| DConnection 2, thread length | 21 mm |
| EN Standard | 1452-3 |
| ISO standard | 1452-3, 7, 228 |
| Material | PVC-U |
| Max working pressure | 16 BAR |
| Pipe diameter | 40 mm |
| Properties | Visual top quality, Excellent fit, Strengthening in the neck radius, Position marks on the product, Products tested at 4.2x nominal pressure, The tolerances, pressure resistance and visual quality meet the highest requirements in the market |
| SConnection no 1 wrench size | 55.0 mm |
| Shape | Straight |
| Unit | Each |
| Weight | 62 g |
| ZConnections distance | 11 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8717284030778 |
|---|---|
| Unit of measure | EA |
| Weight | 65 g |
| Dimensions | 58 × 55 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000306254
VdL PVC Lock Valve DID 3/8"x3/8" KS38PVC
£20.21 excl.
£24.25 incl.
In stock
Expected to ship on Thursday 24 September
BPA000370595
VdL Adaptor nipple 110 x 4" V140150
£32.09 excl.
£38.51 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000165801
VdL Gasket for PVC collarbush 110mm 7110098
£3.73 excl.
£4.48 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000343518
VdL PVC elbow 90° 3/4"x3/4" PVC7ELB9034
£1.76 excl.
£2.11 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000371322
VdL Hose connector 40mm x M 1 1/4" V357041
£4.31 excl.
£5.17 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236300

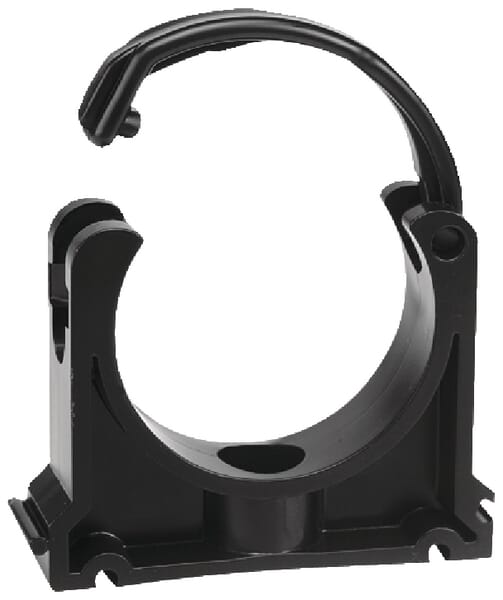

VdL Pipe clamp 2" BP20063
