£20.98
excl. VAT
£25.18 incl. VAT
£25.18
incl. VAT
£20.98 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Application range | PVC-U fittings are not suitable for compressed air lines! |
|---|---|

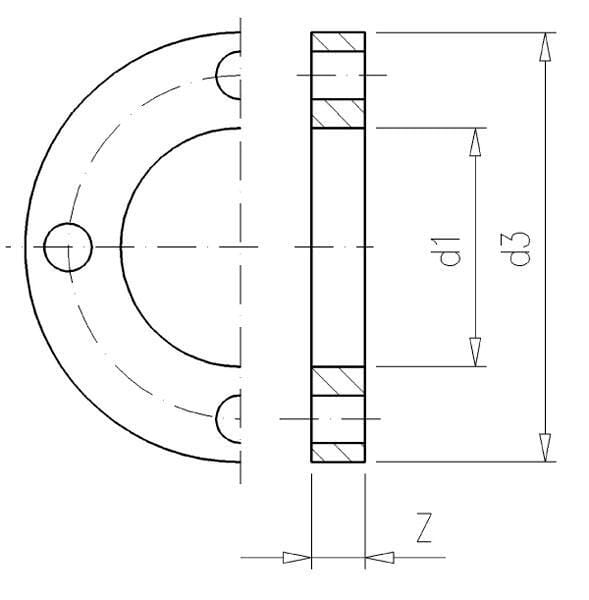

| d1Inside diameter | 167 mm |

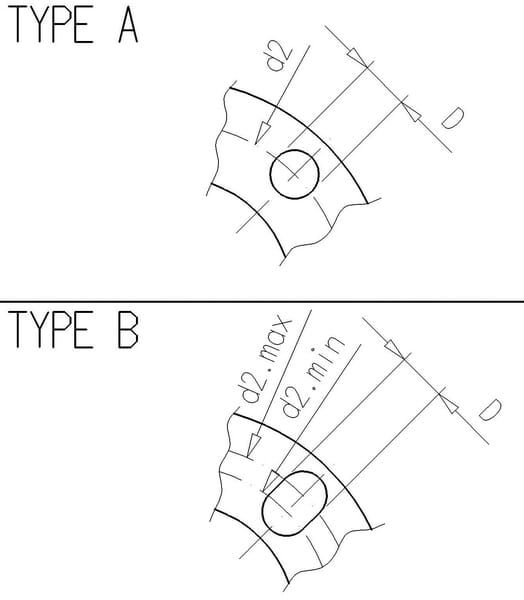

| d2Flange mounting holes distance | 210 mm |
| d3Outside diameter | 250 mm |
| DConnection holes diameter | 18 mm |
| DIN standard | 2501 |
| EN Standard | 1452-3 |
| Flange mounting holes number | 8 |
| ISO standard | 1452-3, 7, 228 |
| Material | PVC-U |
| Max working pressure | 10 BAR |
| Properties | Visual top quality, Excellent fit, Strengthening in the neck radius, Position marks on the product, Products tested at 4.2x nominal pressure, The tolerances, pressure resistance and visual quality meet the highest requirements in the market |
| Unit | Each |
| Weight | 0.71 kg |
| ZThickness | 26 mm |
Logistics
| EAN | 8717284023046 |
|---|---|
| Unit of measure | EA |
| Weight | 713 g |
| Dimensions | 245 × 245 × 26 mm |
| Dangerous goods | No |
You might also like
BPA000371317

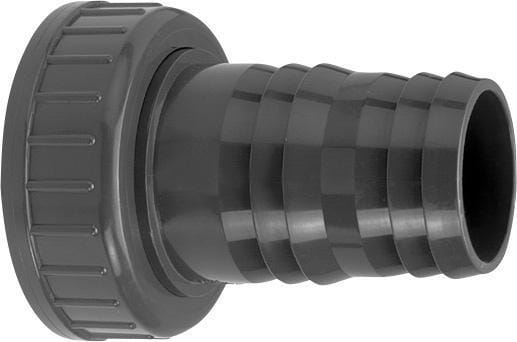

VdL Hose connector 16mm x F 3/4" V357018
