£14.33
excl. VAT
£17.20 incl. VAT
£17.20
incl. VAT
£14.33 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Angle | 90 ° |
|---|---|
| Application range | PVC-U fittings are not suitable for compressed air lines! |
| BConnection no 1 length | 44 mm |
| Connection 1, type | Glued |
| Connection 1, type - male/female | Female |
| Connection 2, type | Glued |
| Connection 2, type - male/female | Female |
| DConnection 2, diameter | 75 mm |
| DConnection no 1 diameter | 75 mm |
| EN Standard | 1452-3 |
| ISO standard | 1452-3, 228 |
| Material | PVC-U |
| Max working pressure | 16 BAR |
| Pipe diameter | 75 mm |
| Properties | Visual top quality, Excellent fit, Strengthening in the neck radius, Position marks on the product, Products tested at 4.2x nominal pressure, The tolerances, pressure resistance and visual quality meet the highest requirements in the market |
| Shape | Elbow |
| Unit | Each |
Logistics
| EAN | 8717284041491 |
|---|---|
| Unit of measure | EA |
| Weight | 473 g |
| Dimensions | 130 × 127 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000165805
VdL PVC collarbush 110mm 7110135
£12.94 excl.
£15.53 incl.
In stock
Expected to ship on Thursday 24 September
BPA000236297
VdL Clamp 16/23 BP1623
£0.56 excl.
£0.67 incl.
In stock
Expected to ship on Thursday 24 September
BPA000306079
VdL PVC Lock Valve Type: DIL 32x32 KS032032PVC
£19.16 excl.
£22.99 incl.
In stock
Expected to ship on Thursday 24 September
BPA000371319
VdL Hose connector 25mm x M 3/4" V357026
£2.67 excl.
£3.20 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000236329
VdL Pipe clamp fill block BP6320
£1.50 excl.
£1.80 incl.
In stock
Expected to ship on Thursday 24 September

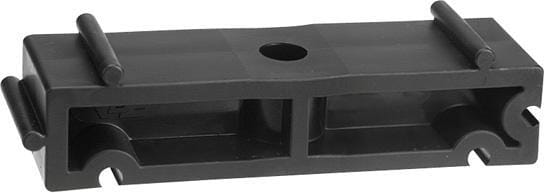

BPA000236305
