£19.16
excl. VAT
£22.99 incl. VAT
£22.99
incl. VAT
£19.16 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Application range | PVC-U fittings are not suitable for compressed air lines! |
|---|---|
| Connection diameter | 32 mm |
| Connection type | Glued |

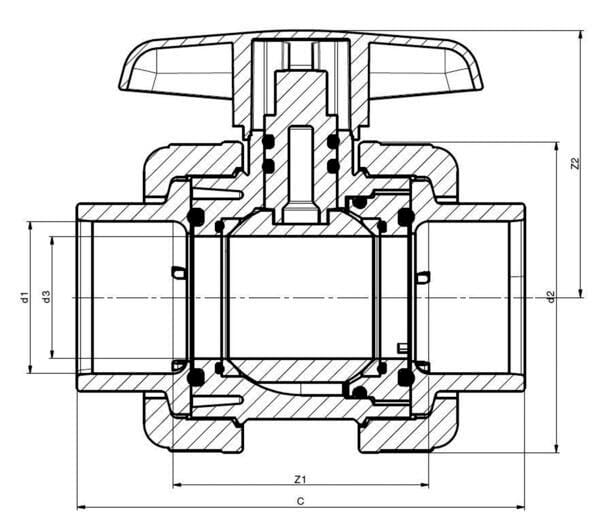

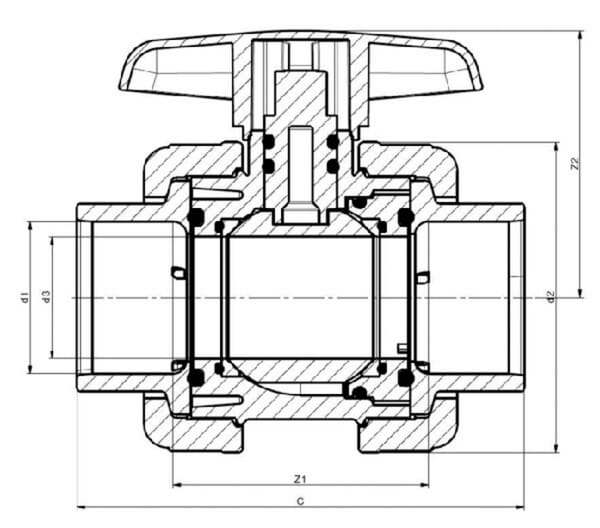

| CTotal length | 108 mm |
| d2Housing height | 73 mm |
| Housing material | PVC-U |
| Long description | Application:, PVC-U fittings are not suitable for compressed air lines!, Properties:, Union nut on both sides, Radially expandable, Ball secured against flushing, Seals made from EPDM |
| Max working pressure | 16 BAR |
| Nominal inner diameter | 25 mm |
| Number of ports | 2 |
| Number of positions | 2 |
| Properties | Visual top quality, Excellent fit, Double sided – flush-out secured, Ball valves are individually tested for leakage, Seals are available in EPDM and FPM, Union nut on both sides, Radially expandable, Ball secured against flushing |
| Type | Manual valve |
| Unit | Each |
| Z1Installation length | 63 mm |
Logistics
| EAN | 8717284007510 |
|---|---|
| Unit of measure | EA |
| Weight | 305 g |
| Dimensions | 110 × 97 × 70 mm |
| Dangerous goods | No |
You might also like
BPA000162237
VdL Gasket for PVC collarbush 140mm 7140098Z
£5.33 excl.
£6.40 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000299342
VdL Replace Kit Lock Valve DN 20 KITDN25
£2.60 excl.
£3.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236273

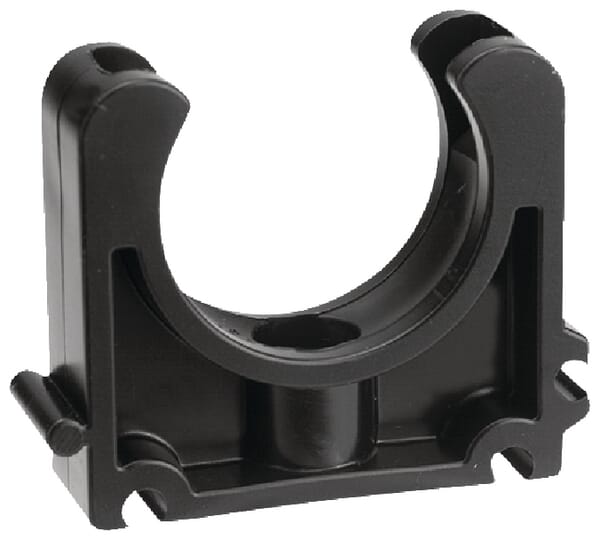

VdL Tube clamp 10mm BP1016
