£31.74
excl. VAT
£38.09 incl. VAT
£38.09
incl. VAT
£31.74 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Application range | PVC-U fittings are not suitable for compressed air lines! |
|---|---|
| Connection diameter | 40 mm |
| Connection type | Glued |

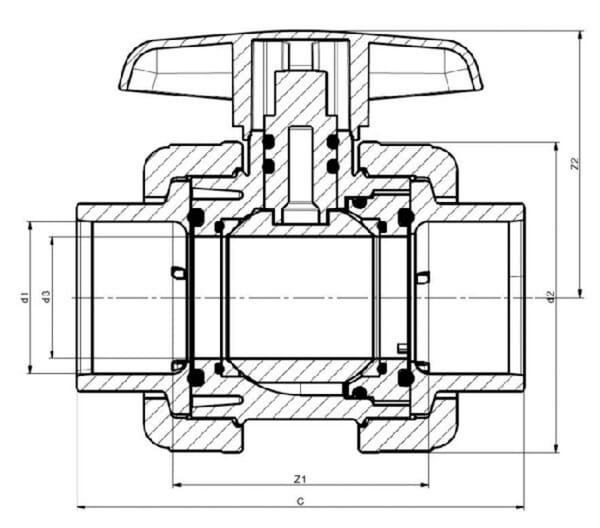

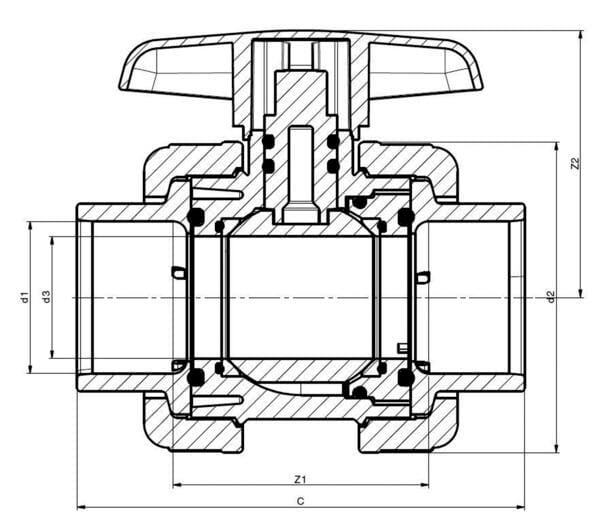

| CTotal length | 122 mm |
| d2Housing height | 86 mm |
| Housing material | PVC-U |
| Long description | Application:, PVC-U fittings are not suitable for compressed air lines!, Properties:, Union nut on both sides, Radially expandable, Ball secured against flushing, Seals made from EPDM |
| Max working pressure | 16 BAR |
| Nominal inner diameter | 32 mm |
| Number of ports | 2 |
| Number of positions | 2 |
| Properties | Visual top quality, Excellent fit, Double sided – flush-out secured, Ball valves are individually tested for leakage, Seals are available in EPDM and FPM, Union nut on both sides, Radially expandable, Ball secured against flushing |
| Type | Manual valve |
| Unit | Each |
| Z1Installation length | 69 mm |
Logistics
| EAN | 8717284008098 |
|---|---|
| Unit of measure | EA |
| Weight | 476 g |
| Dimensions | 125 × 113 × 125 mm |
| Dangerous goods | No |
