£5,238.52
excl. VAT
£6,286.22 incl. VAT
£6,286.22
incl. VAT
£5,238.52 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| a. | 912 mm |
|---|---|
| Application range | For pumping tasks in farm and field |
| b. | 330 mm |
| Benefits | Long service life |
| Consists of | Lobe pump, Galvanised three-point bracket, PTO shaft (1 3/8" 6-piece for tractor drive) with overload protection, PTO shaft protective cap, 2 connecting pipes with flanges |
| Details | Robust, reliable and proven, Highly resistant against dry running |
| DN | 150 mm |
| Drive shaft | 2x 1 3/8" 6-pieces, for tractor drive |
| Flange diameter (in) | 6 Inch |
| Flow max. | 2250 l/min |
| Length L1 | 135 mm |
| Length L2 | 271 mm |
| Oil capacity | 1 l |
| Pressure max. | 5 BAR |
| Properties | Greasable shaft seals, Fitted with bearings on both sides, Lobe material: SBR70, With steel protective plates, Self-priming to 7.5 m, Can operate in both directions of flow, Low pulse sensitivity |
| Pump capacity | 135 m³/h |
| Rotation max. | 650 r/min |
| Stroke v | 3.48 l |

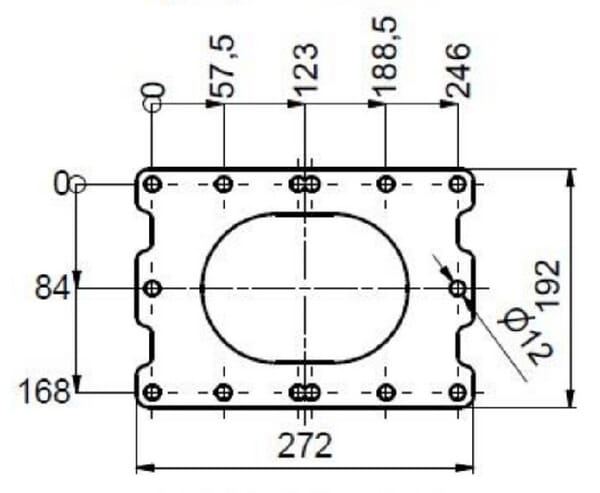

| Technical drawing | GBO.019 |
| Torque max. | 373 N·m |
| Unit | Each |
| Weight | 146 kg |
Compatible accessories
Parts and components that work with this product.
0205540
MZ O-ring for sight glass 2" 0205540
£0.41 excl.
£0.49 incl.
DFD003

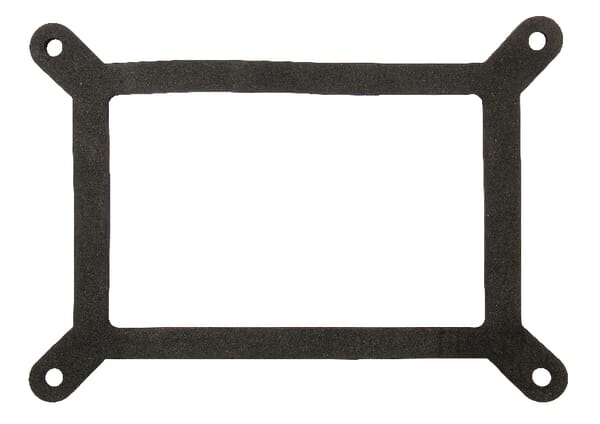

Vogelsang Gasket DFD003
£12.03 excl.
£14.44 incl.
KS114FKR
Kramp Ball valve BSP 2x female 1 1/4"+SS handle KS114FKR
£21.88 excl.
£26.26 incl.
SPZO0400050003
MZ Sight glass 2" without O-ring SPZO0400050003
£3.64 excl.
£4.37 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 215000 g |
| Dimensions | 1200 × 1100 × 800 mm |
| Dangerous goods | No |
You might also like
BPA000250668

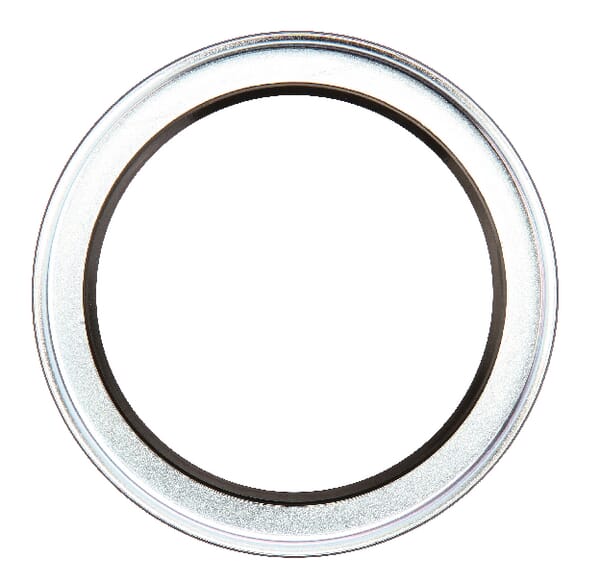

Vogelsang Oil seal DWD001
£22.76 excl.
£27.31 incl.
In stock
Expected to ship on Friday 18 September
BPA000253543

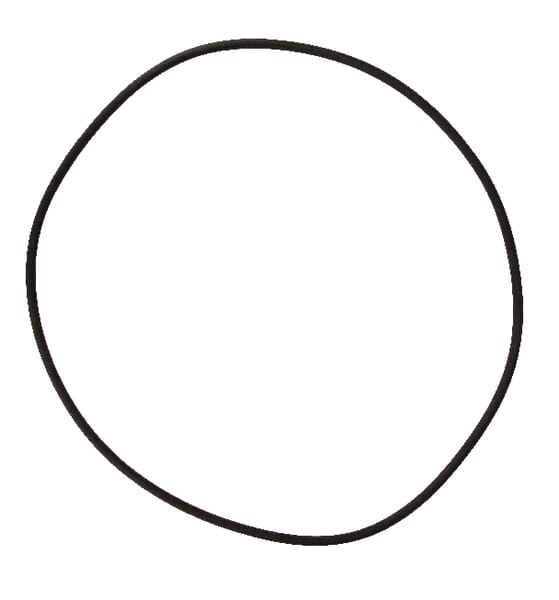

Vogelsang O-ring 280x6mm DOR051
£8.28 excl.
£9.94 incl.
In stock
Expected to ship on Friday 18 September
BPA000324947

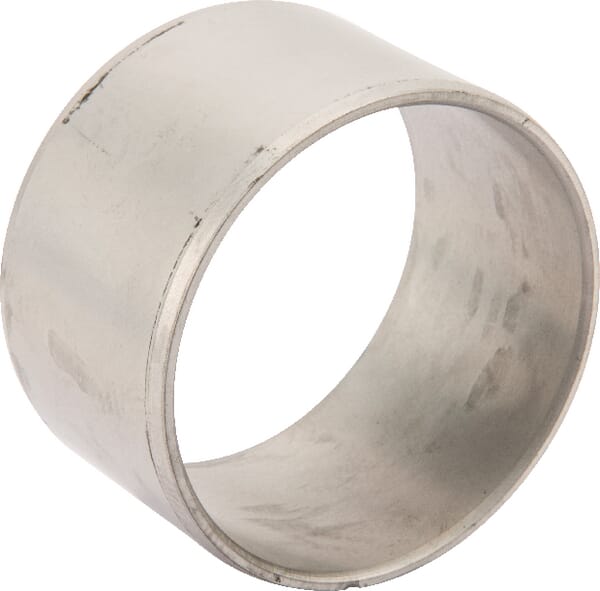

Vogelsang Bush 55x60x35 NIR023
£30.84 excl.
£37.01 incl.
In stock
Expected to ship on Friday 18 September
BPA000253539

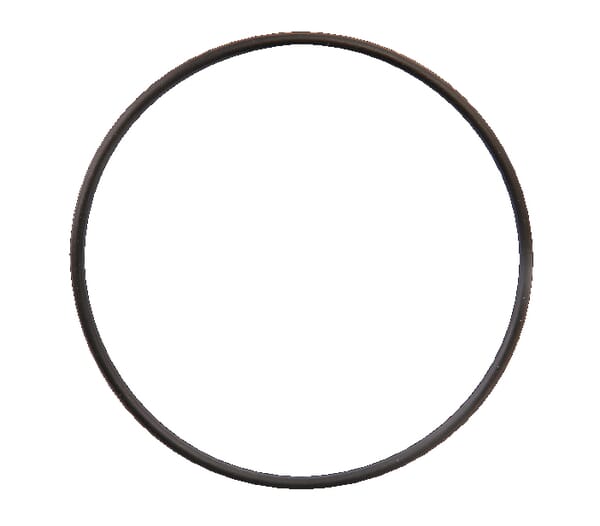

Vogelsang O-ring DOR041
£0.86 excl.
£1.03 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000341218
Vogelsang Rotary lobe pump R136-210S PPK0000268
£4,842.39 excl.
£5,810.87 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000326147

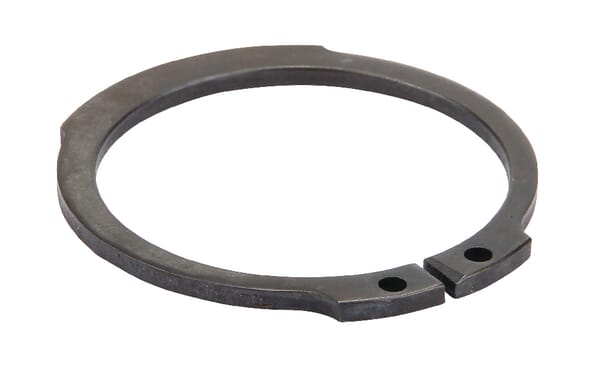

Vogelsang Clip NSR002
