£5,038.52
excl. VAT
£6,046.22 incl. VAT
£6,046.22
incl. VAT
£5,038.52 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Particularly well suited as a liquid manure pump for the farm, Perfect for mobile applications such as filling and emptying tankers and transferring slurry between pits- The standard solution for pumping tasks in farm and field |
|---|---|
| Benefits | Long service life |
| Details | Robust, reliable, and proven, Very resistant to dry running |
| Drive shaft | 1x smooth Ø32mm |
| Flow max. | 75 l/min |
| Length L1 | 166.5 mm |
| Length L2 | 331 mm |
| Length L3 | 560 mm |
| Length L4 | 181 mm |
| Oil capacity | 1 l |
| Pressure max. | 5 BAR |
| Properties | Greasable shaft seals, Stored on both sides, Rotary lobes material: SBR70, With steel protective plates, Self-priming up to 7,5m (25ft), Can be opperated in both flow directions, Ensures running with low pulsations |
| Pump capacity | 123 m³/h |
| Rotation max. | 470 r/min |
| Stroke v | 4.64 l |
| Torque max. | 490 N·m |
| Unit | Each |
| Weight | 125.7 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
BPA000247260

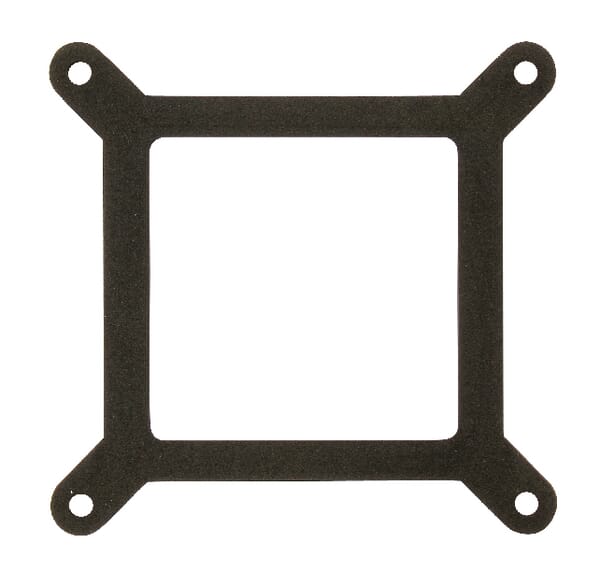

Vogelsang Gasket for 116 R 120 pomp DFD002
£10.13 excl.
£12.16 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000341221
Vogelsang Rotary lobe pump FX116-120S PPK0000273
£3,010.55 excl.
£3,612.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000343777

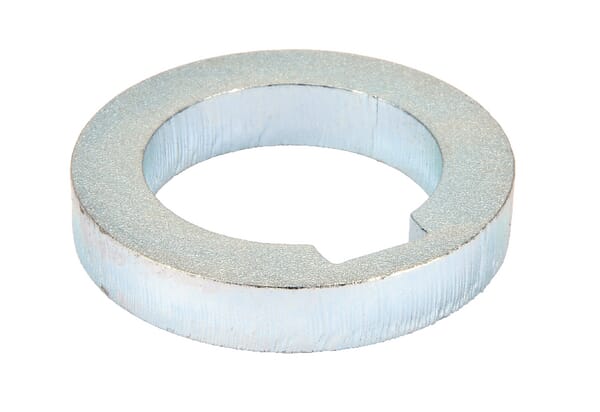

Vogelsang Inner plate, R116 PFL619
£48.10 excl.
£57.72 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000342758

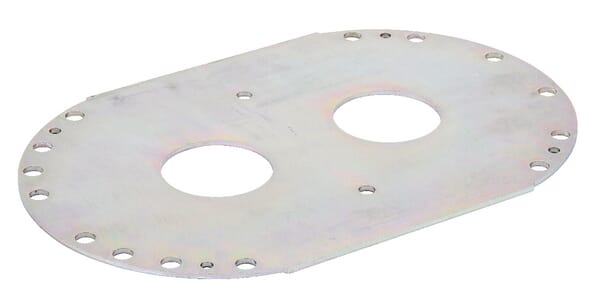

Vogelsang Protection Plate 400/74mm PSP003
£156.35 excl.
£187.62 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000326132

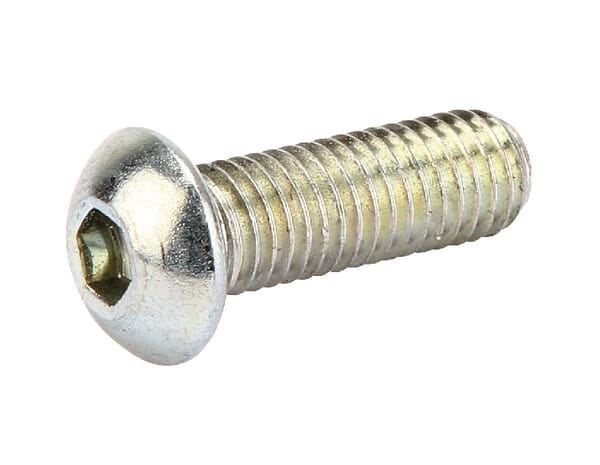

Vogelsang Bolt M10x30 10.9 NSI009
