£6,637.51
excl. VAT
£7,965.02 incl. VAT
£7,965.02
incl. VAT
£6,637.51 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| a. | 812 mm |
|---|---|
| Application range | For pumping tasks in farm and field |
| b. | 330 mm |
| Benefits | Long service life |
| Consists of | Lobe pump, Galvanised three-point bracket, PTO shaft (1 3/8" 6-piece for tractor drive) with overload protection, PTO shaft protective cap, 2 connecting pipes with flanges |
| Details | Robust, reliable and proven, Highly resistant against dry running |
| DN | 150 mm |
| Drive shaft | 2x 1 3/8" 6-pieces, for tractor drive |
| Flange diameter (in) | 6 Inch |
| Flow max. | 3800 l/min |
| Length L1 | 195 mm |
| Length L2 | 391 mm |
| Oil capacity | 1 l |
| Pressure max. | 4 BAR |
| Properties | Greasable shaft seals, Fitted with bearings on both sides, Lobe material: SBR70, With steel protective plates, Self-priming to 7.5 m, Can operate in both directions of flow, Low pulse sensitivity |
| Pump capacity | 225 m³/h |
| Rotation max. | 650 r/min |
| Stroke v | 5.8 l |

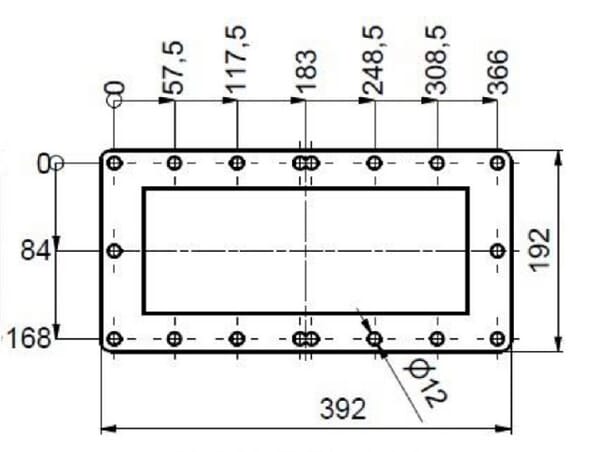

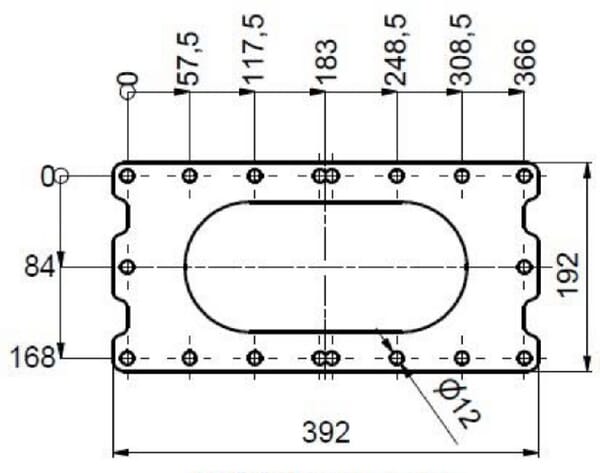

| Technical drawing | GBO.018 |
| Torque max. | 492 N·m |
| Unit | Each |
| Weight | 166 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 258000 g |
| Dimensions | 1500 × 1200 × 1000 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000341226

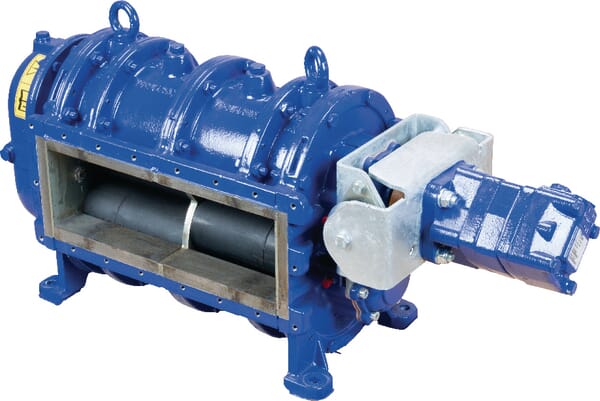

Vogelsang Rotary lobe pump R116-300 H PPK0000326
£5,580.54 excl.
£6,696.65 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000344148

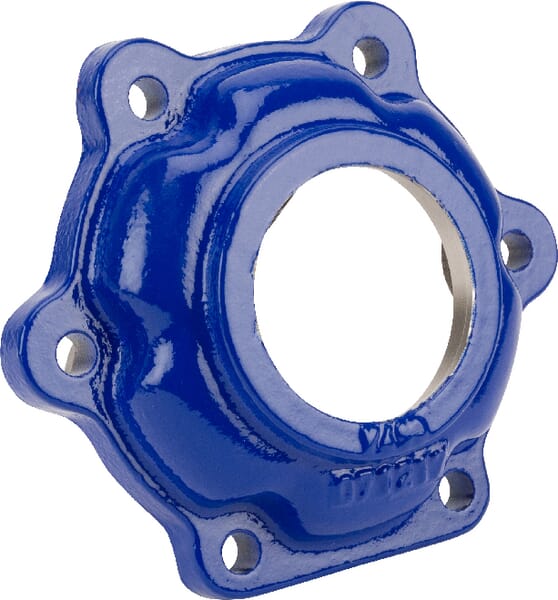

Vogelsang Protection PGP030
£65.78 excl.
£78.94 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000341224
Vogelsang Rotary lobe pump R116-240 H PPK0000317
£5,038.52 excl.
£6,046.22 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000341206

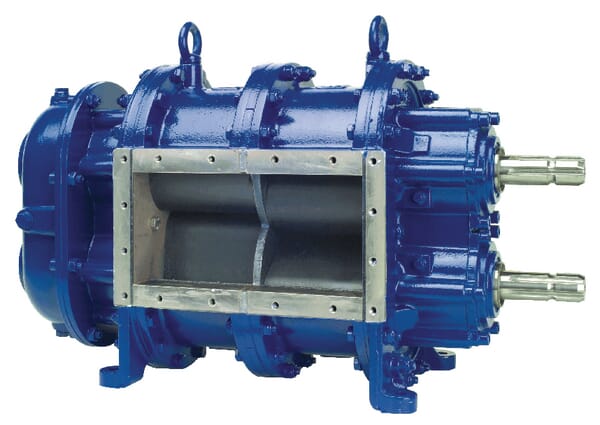

Vogelsang Rotary lobe pump R136-280S PPK0000041
£5,513.87 excl.
£6,616.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000374464

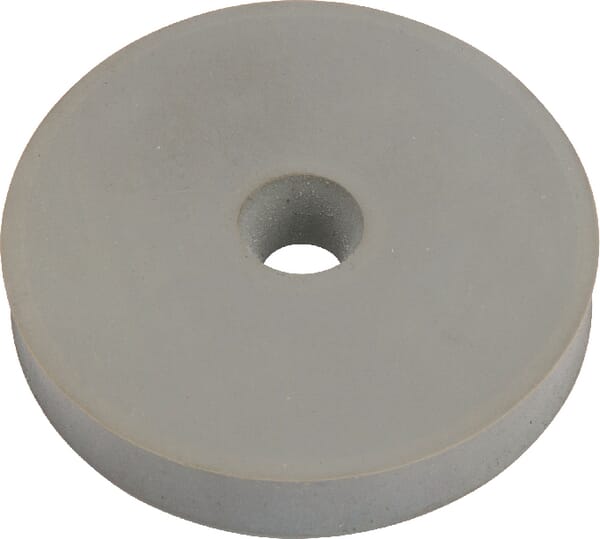

Vogelsang Rubber seal 60x8mm TGD004
£2.03 excl.
£2.44 incl.
In stock
Expected to ship on Friday 18 September
BPA000325970

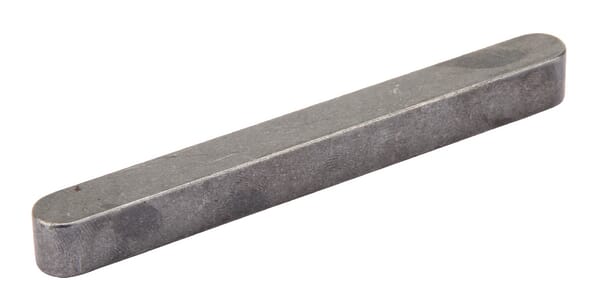

Vogelsang Key 10x10x100mm NPF006
