Roll over image to zoom in · Click to see full view
£6.38
excl. VAT
£7.66 incl. VAT
£7.66
incl. VAT
£6.38 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M20 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 10 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |

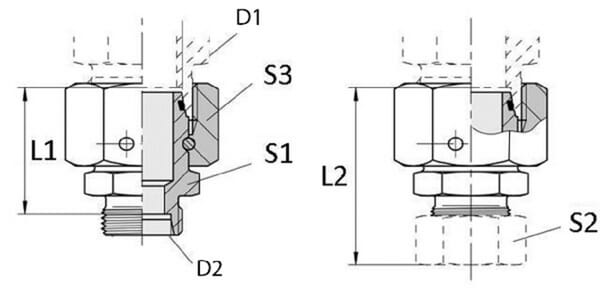

| Connection no 1 length | 29.5 mm |

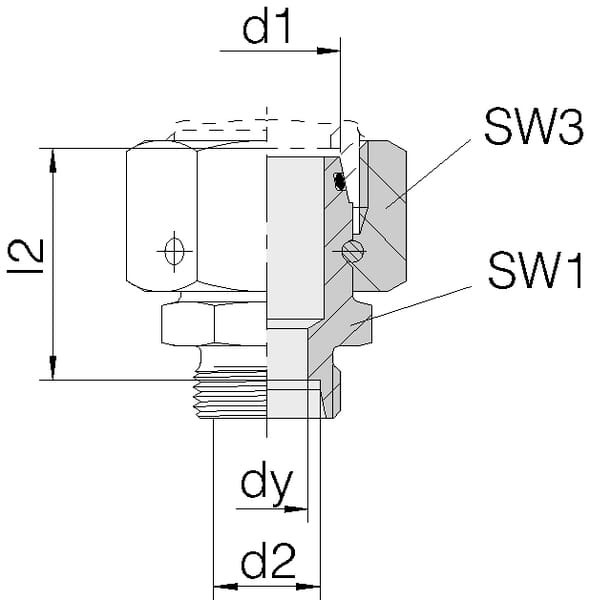

| d1Connection no 1 diameter | 12 mm |
| D2Series connection 1 | 10S |
| DIN standard | 2401 |
| dyInside diameter side 2 | 7 mm |
| L1Length | 29.5 mm |
| L2Total length | 29.5 mm |
| Max working pressure | 630 BAR |
| Product details | Multiple corrosion resistance, Viton seal available on request |
| Seal material | Nitrile rubber [NBR] |
| Shape | Straight |
| SW3Connection no 1 wrench size | 24.0 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
ES410LS
Voss Cutting ring ES4 10LS ES410LS
£2.78 excl.
£3.34 incl.
MV10S
Voss Swivel nut 10S MV10S
£0.75 excl.
£0.90 incl.
MV12S
Voss Swivel nut 12S MV12S
£1.00 excl.
£1.20 incl.
SV2S10LS
Voss Cutting ring 10LS SV2S10LS
£0.51 excl.
£0.61 incl.
SV2S12LS
Voss Cutting ring 12LS SV2S12LS
£0.51 excl.
£0.61 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 73 g |
| Dimensions | 38 × 26 × 26 mm |
| Dangerous goods | No |
