Roll over image to zoom in · Click to see full view
£62.25
excl. VAT
£74.70 incl. VAT
£74.70
incl. VAT
£62.25 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

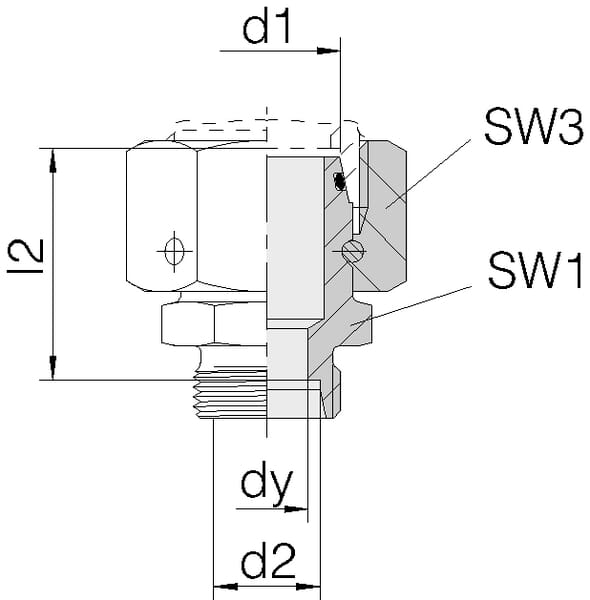

| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 12 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection no 1 length | 41.5 mm |
| d1Connection no 1 diameter | 42 mm |
| D2Series connection 1 | 12L |
| DIN standard | 2401 |
| dyInside diameter side 2 | 10 mm |
| L1Length | 41.5 mm |
| L2Total length | 41.5 mm |
| Max working pressure | 250 BAR |
| Product details | Multiple corrosion resistance, Viton seal available on request |
| Seal material | Nitrile rubber [NBR] |
| Shape | Straight |
| SW3Connection no 1 wrench size | 60.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 522 g |
| Dimensions | 68 × 60 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000288186
Voss Cut ring coupling 28L M36x2,0 - BSP 3/4" - Male GES28LR34
£16.40 excl.
£19.68 incl.
In stock
Expected to ship on Friday 2 October
BPA000263335
Voss Coupling 42L ESV42L
£93.43 excl.
£112.12 incl.
In stock
Expected to ship on Friday 2 October
BPA000402417
Voss Elbow Coupling 12L R1/2 WEV12LRK12
£17.66 excl.
£21.19 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000315183
Voss Gauge Coupl F 8 SR 1/2 BSP MAV8SR12
£6.90 excl.
£8.28 incl.
In stock
Expected to ship on Monday 5 October

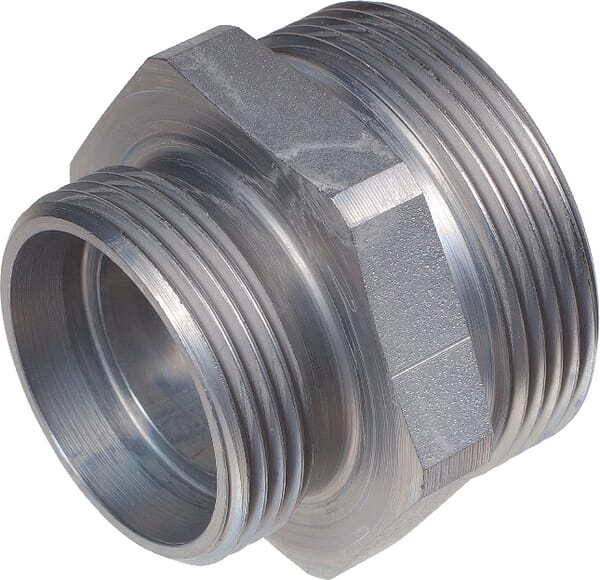

BPA000287213
Voss Straight Adaptor (No M/R) 35L 28L GS3528L
£34.24 excl.
£41.09 incl.
In stock
Expected to ship on Friday 2 October

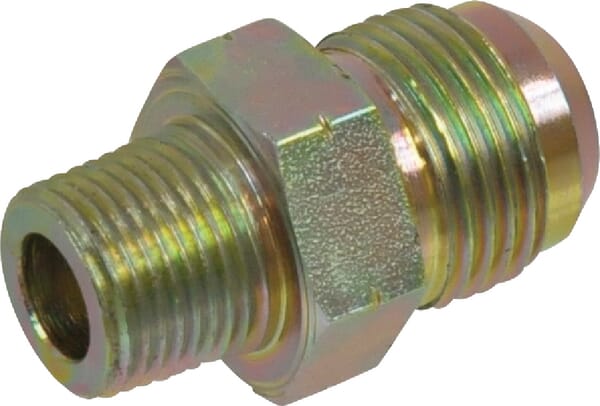

BPA000349186
