£1.55
excl. VAT
£1.86 incl. VAT
£1.86
incl. VAT
£1.55 excl. VAT
In stock
Expected to ship on Thursday 24 September

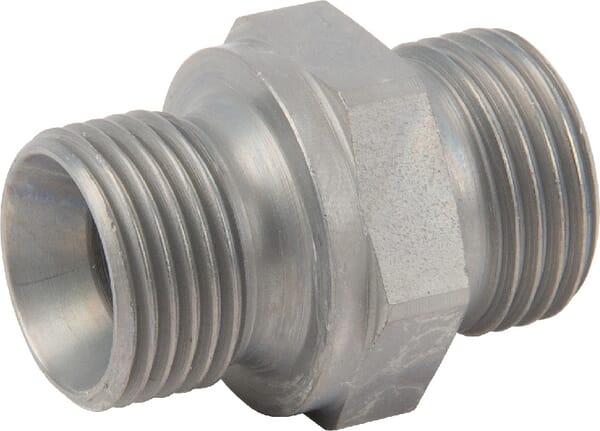

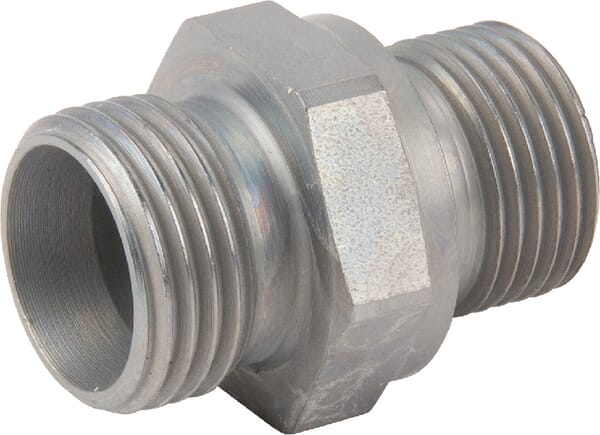

Product details
| Body height | 30 mm |
|---|---|
| Connection 1, thread diameter | M16 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 diameter | 10 mm |
| Connection no 1 thread length | 12 mm |
| DIN standard | 2401 |
| Inside diameter | 7 mm |
| Max. tightening torque | 45 N·m |
| Max working pressure | 250 BAR |
| Outside diameter | 18 mm |
| Product details | Available in stainless steel on request, BSP side is fitted with cone for hose assembly |
| Pros | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Reduced risk of leakage |
| Series connection 1 | 10L |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 27 g |
| Dimensions | 30 × 19 × 19 mm |
| Dangerous goods | No |
You might also like
BPA000288526
Voss Coupling 20S 1-1/16UNF GEV20S1116UNF
£30.46 excl.
£36.55 incl.
In stock
Expected to ship on Thursday 24 September
BPA000355231

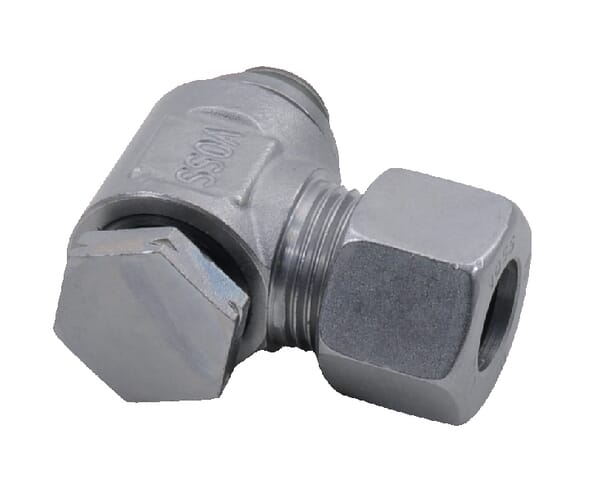

Voss Banjo coupling 28L R1 RSWV28LR1
£72.14 excl.
£86.57 incl.
In stock
Expected to ship on Thursday 24 September
BPA000348124

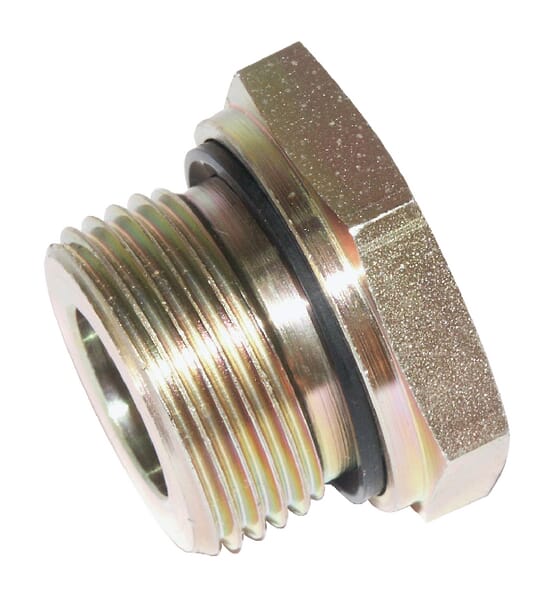

Voss Reducing Adaptor M/F R1/2 R1/8 REDR1218WD
£5.06 excl.
£6.07 incl.
In stock
Expected to ship on Thursday 24 September
BPA000380995

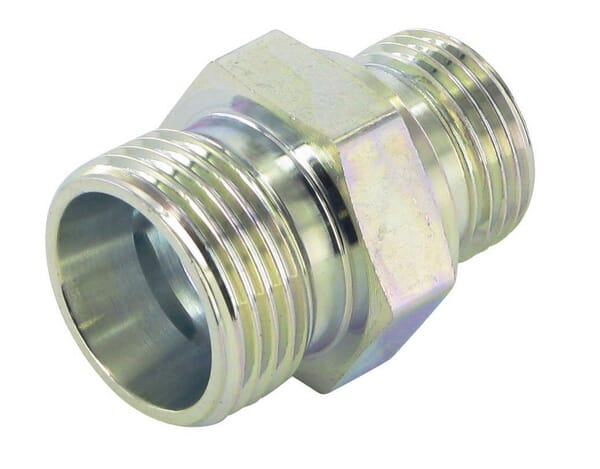

Voss Coupling with male thread UM13-22x150 unb UMAG1322150N
£9.80 excl.
£11.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000268132
Voss Adjustable male stud 15L ETSD15L
£15.00 excl.
£18.00 incl.
In stock
Expected to ship on Thursday 24 September
BPA000288172

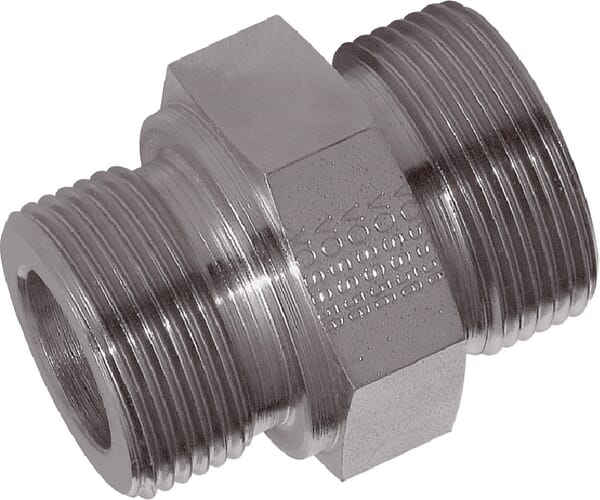

Voss Adaptor 28L M30X1,5 GES28LM3015
