£1.93
excl. VAT
£2.32 incl. VAT
£2.32
incl. VAT
£1.93 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Body height | 31.5 mm |
|---|---|
| Connection 1, thread diameter | M18 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 3/8 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSPP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection no 1 diameter | 12 mm |
| Connection no 1 thread length | 12 mm |
| DIN standard | 2401 |
| Inside diameter | 9 mm |
| Max. tightening torque | 80 N·m |
| Max working pressure | 250 BAR |
| Outside diameter | 22 mm |
| Product details | Available in stainless steel on request, BSP side is fitted with cone for hose assembly |
| Pros | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Reduced risk of leakage |
| Series connection 1 | 12L |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 41 g |
| Dimensions | 35 × 25 × 25 mm |
| Dangerous goods | No |
You might also like

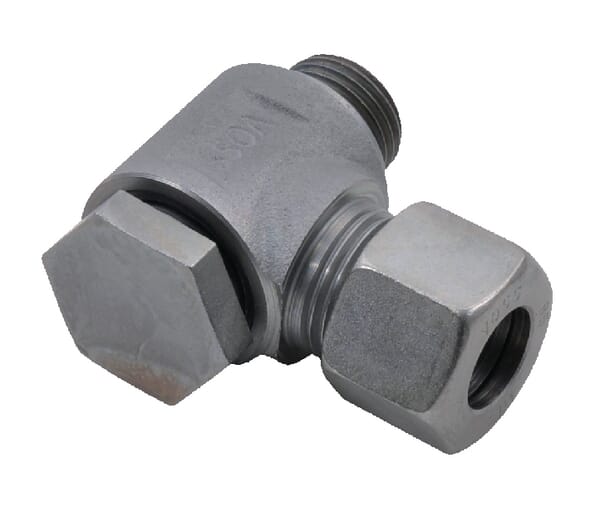

BPA000355227
Voss Banjo coupling 25S M33 RSWV25SM33
£77.27 excl.
£92.72 incl.
In stock
Expected to ship on Thursday 24 September

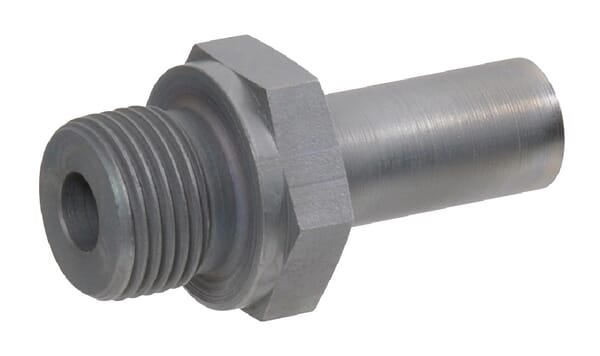

BPA000258167
Voss Coupling 16S R3/4 EGES16SR34WD
£21.90 excl.
£26.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000402445
Voss Elbow Coupling 30S R1-1/4 WEV30SR114
£48.74 excl.
£58.49 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287885
Voss Cut ring coupling 12L M18x1,5 - BSP 1/2" - Male GES12LR12
£3.24 excl.
£3.89 incl.
In stock
Expected to ship on Thursday 24 September

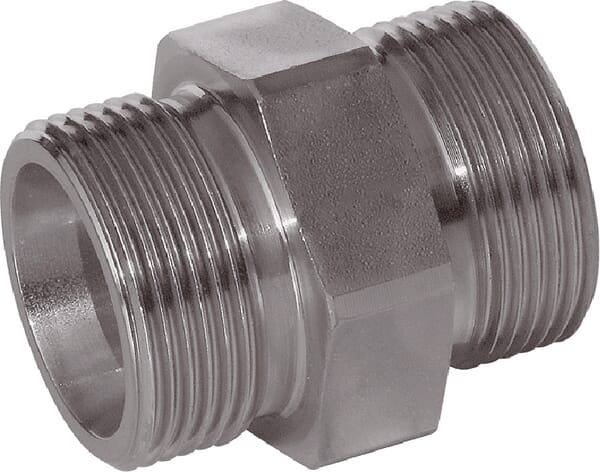

BPA000287206
