£50.43
excl. VAT
£60.52 incl. VAT
£60.52
incl. VAT
£50.43 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Body height | 43 mm |
|---|---|
| Connection 1, thread diameter | 1-3/16 Inch |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-3/16 Inch |
| Connection 2, threads per inch | 12 |
| Connection 2, thread type | UNF |
| Connection 2, type | Seal ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 46.0 mm |
| Connection no 1 diameter | 35 mm |
| DIN standard | 2401, 2353, 3852 |
| Inside diameter | 16 mm |
| KConnection no 1 thread length | 15 mm |
| Max. tightening torque | 140 N·m |
| Max working pressure | 250 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes, Viton seal available on request, SAE standard : 514 |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 50.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 35L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 212 g |
| Dimensions | 52 × 52 × 44 mm |
| Dangerous goods | No |
You might also like
BPA000279945
Voss Coupling 35L R1-1/4 GAV35LR114
£45.82 excl.
£54.98 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287463
Voss Coupling 18L 10L GV1810L
£14.71 excl.
£17.65 incl.
In stock
Expected to ship on Thursday 24 September
BPA000402475

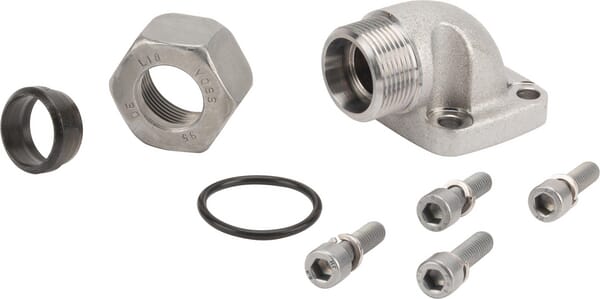

Voss Connecting flange 15L WFV15L35
£26.26 excl.
£31.51 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000258518

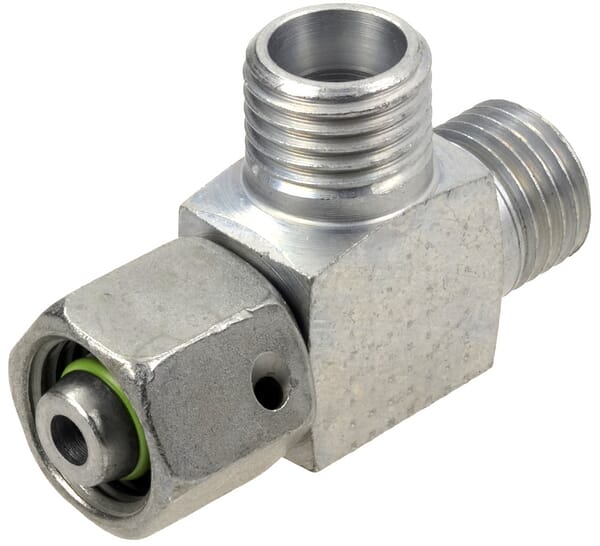

Voss Swivel T piece union F-M-M 18L ELSD18L
£18.75 excl.
£22.50 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287962
Voss Cut ring coupling 14S M22x1,5 - BSP 1/2" - Male GES14SR12
£4.22 excl.
£5.06 incl.
In stock
Expected to ship on Thursday 24 September
BPA000355084

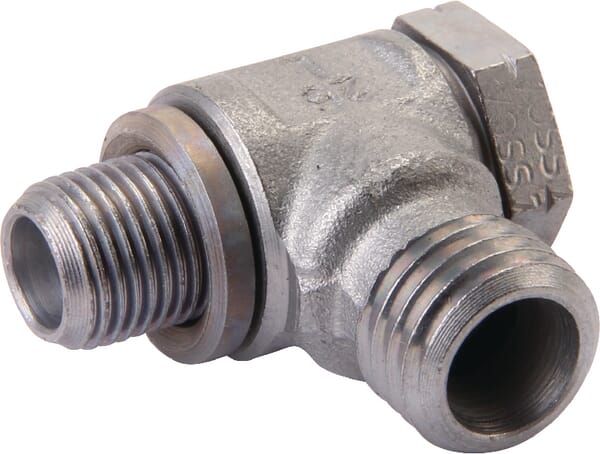

Voss Banjo coupling 10L R3/8 RSWS10LR38
