Roll over image to zoom in · Click to see full view
Product details
| Connection 1, thread diameter | M30 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M30 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection 3, length | 55 |
| Connection 3, thread diameter | M30 |
| Connection 3, thread pitch | 2.00 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Inside diameter | 19 mm, 17 mm |

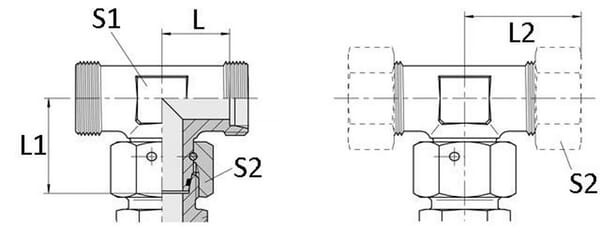

| L1Connection no 1 center to end distance | 44 mm |
| L2Connection 2, centre to end distance | 38.5 mm |
| LConnection 3 centre to end distance | 27.5 mm |
| Length | 70 mm |
| Max working pressure | 250 BAR |
| Pipe diameter | 22 mm |
| Product details | Pre-assembled with O-ring, Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Viton seal available on request |
| Pros | Reduced risk of leakage |
| S1Body height | 27 mm |
| S2Connection no 1 wrench size | 36.0 mm |
| Sealing ring inside diameter | 20 mm |
| Sealing ring thickness | 2 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | L |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | 8719607068512 |
|---|---|
| Unit of measure | EA |
| Weight | 307 g |
| Dimensions | 70 × 55 × 36 mm |
| Dangerous goods | No |
You might also like
BPA000263255
Voss Coupling 18L ESS18L
£22.18 excl.
£26.62 incl.
In stock
Expected to ship on Friday 2 October
BPA000268305

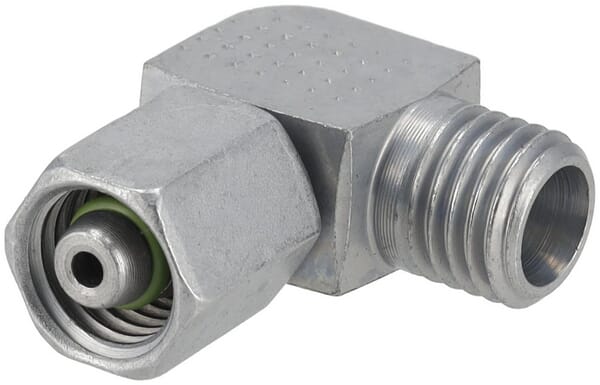

Voss Swivel elbow 90° M18x1.5 12L EWSD12L
£8.12 excl.
£9.74 incl.
In stock
Expected to ship on Friday 2 October
BPA000400079
Voss Elbow Coupling 18L WV18L
£14.76 excl.
£17.71 incl.
In stock
Expected to ship on Friday 2 October
BPA000287966
Voss Coupling 14S R1/2 GES14SR12WD
£4.55 excl.
£5.46 incl.
In stock
Expected to ship on Friday 2 October
BPA000288550
Voss Coupling 25S M33 GEV25SM33WD
£17.15 excl.
£20.58 incl.
In stock
Expected to ship on Friday 2 October

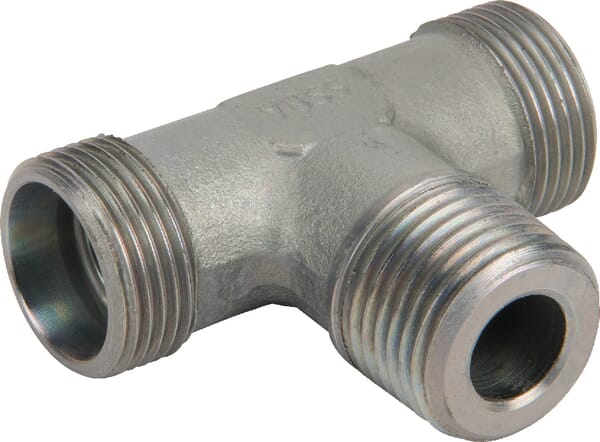

BPA000374262
