Roll over image to zoom in · Click to see full view
£17.15
excl. VAT
£20.58 incl. VAT
£20.58
incl. VAT
£17.15 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M36 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 46.0 mm |
| Connection no 1 diameter | 25 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |
| KConnection no 1 thread length | 18 mm |
| L1Connection 2, centre to end distance | 23 mm |
| L2Connection no 1 center to end distance | 47 mm |
| Max working pressure | 420 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Connection no 1 wrench size | 41.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 25S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 495 g |
| Dimensions | 70 × 52 × 68 mm |
| Dangerous goods | No |
You might also like
BPA000401989
Voss Seal ring R3/4 WDVR34
£1.17 excl.
£1.40 incl.
In stock
Expected to ship on Friday 2 October
BPA000287313
Voss Cutting ring coupling bulkhead 10S GSS10S
£5.98 excl.
£7.18 incl.
In stock
Expected to ship on Friday 2 October

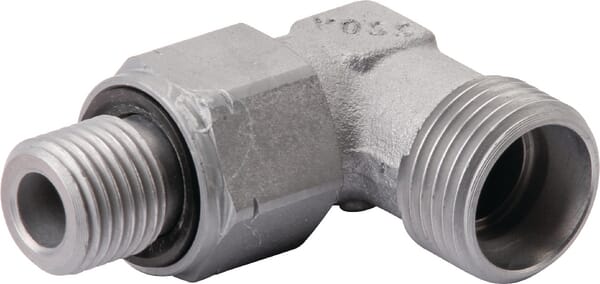

BPA000268292
Voss Coupling+locking nut 15-1/2 EWSC15LR12WD
£19.65 excl.
£23.58 incl.
In stock
Expected to ship on Friday 2 October

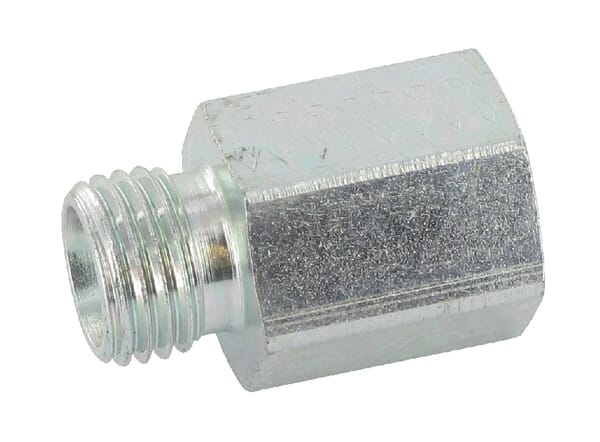

BPA000380906
Voss UFAG13x8.13NU UFAG13813NU
£5.96 excl.
£7.15 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000258567
Voss Adjustable male stud 22L ELVD22L
£39.64 excl.
£47.57 incl.
Backorder available
Usually ships within 3–8 weeks

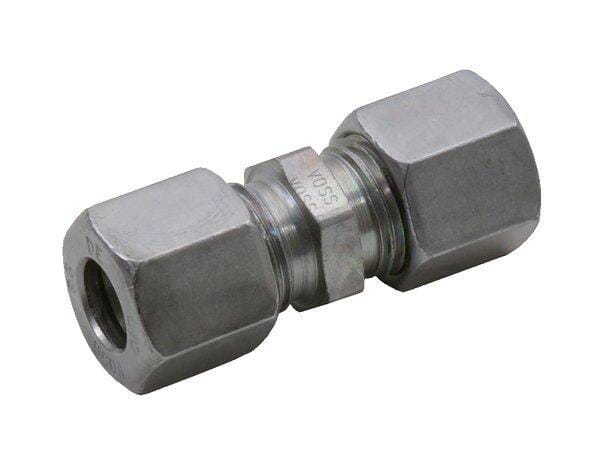

BPA000287503
