Product details

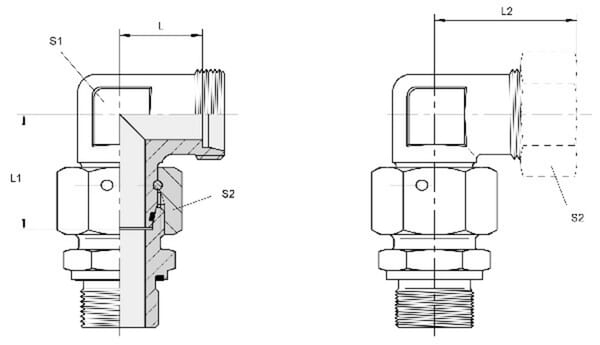

| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M18 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 12 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection no 1 diameter | 12 mm |
| DIN standard | 2401 |
| Includes | Coupling, Cutting ring, Nut |
| L1Connection 2, centre to end distance | 17 mm |
| L2Connections distance | 32 mm |
| LConnection centre to insert distance | 17 mm |
| Max working pressure | 315 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Complete coupling |
| Pros | 2S cutting ring |
| S2Connection no 1 wrench size | 22.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 12L |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 113 g |
| Dimensions | 48 × 45 × 20 mm |
| Dangerous goods | No |
