£14.44
excl. VAT
£17.33 incl. VAT
£17.33
incl. VAT
£14.44 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M26 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 18 mm |
| Connection 2, thread diameter | M26 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 32.0 mm |
| Connection no 1 diameter | 18 mm |
| DIN standard | 2401 |
| Includes | Coupling, Cutting ring, Nut |

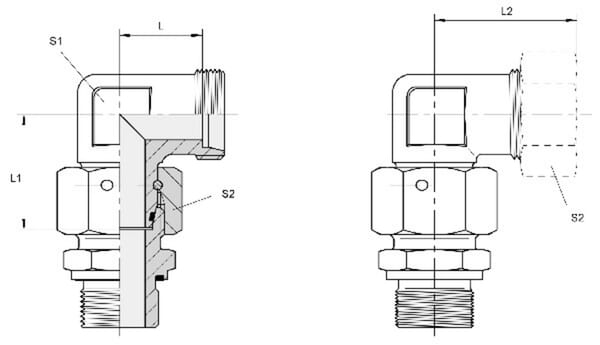

| L1Connection 2, centre to end distance | 23.5 mm |
| L2Connections distance | 40 mm |
| LConnection centre to insert distance | 23.5 mm |
| Max working pressure | 315 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Complete coupling |
| Pros | 2S cutting ring |
| S2Connection no 1 wrench size | 32.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 18L |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 277 g |
| Dimensions | 55 × 50 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000396072

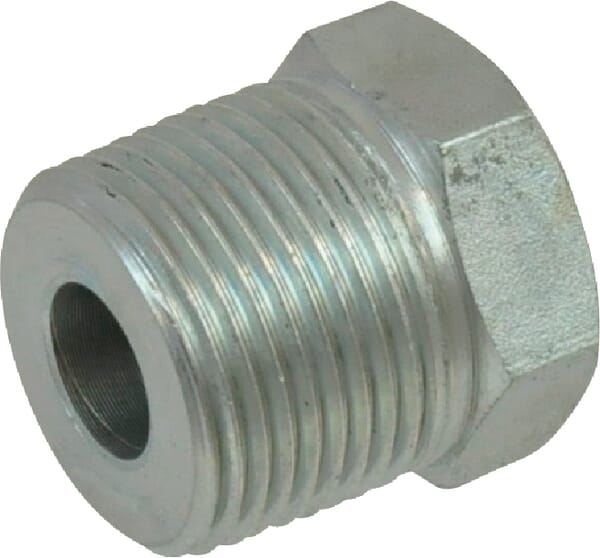

Voss Nipple male/female 3/4 BSP thread x1/4 BSP VRBTB1204
£8.87 excl.
£10.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000268124
Voss Adjustable male stud 12L ETSD12L
£12.96 excl.
£15.55 incl.
In stock
Expected to ship on Friday 2 October
BPA000288313
Voss Adaptor 6S-R1/4 GES6SR14ACH60
£1.69 excl.
£2.03 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000262822

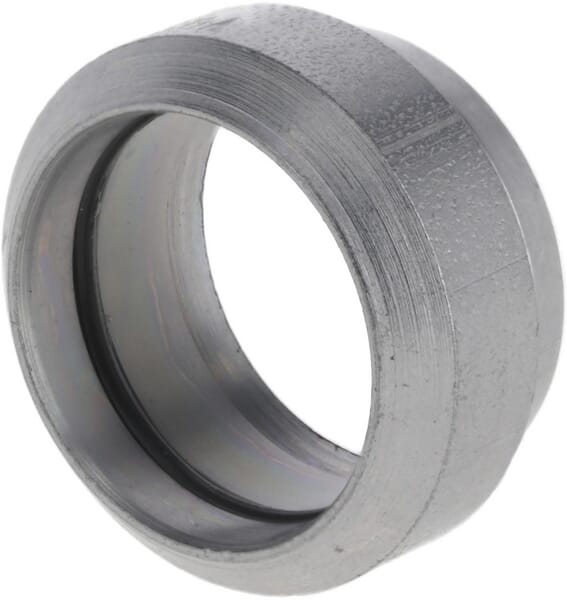

Voss Cutting ring ES4 30S ES430S
£13.06 excl.
£15.67 incl.
In stock
Expected to ship on Friday 2 October
BPA000355090

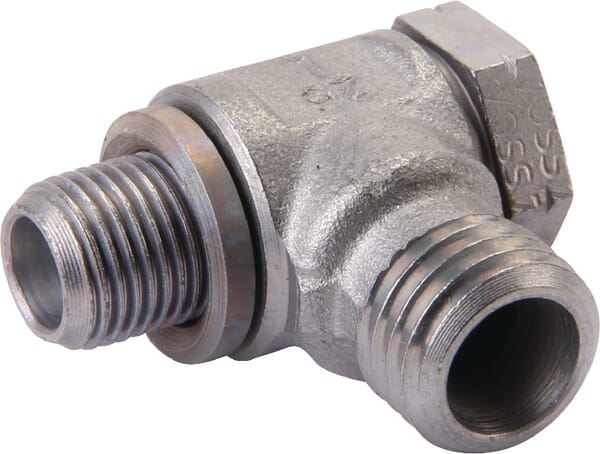

Voss Banjo coupling 10S R3/8 RSWS10SR38
£15.75 excl.
£18.90 incl.
In stock
Expected to ship on Friday 2 October
BPA000247428

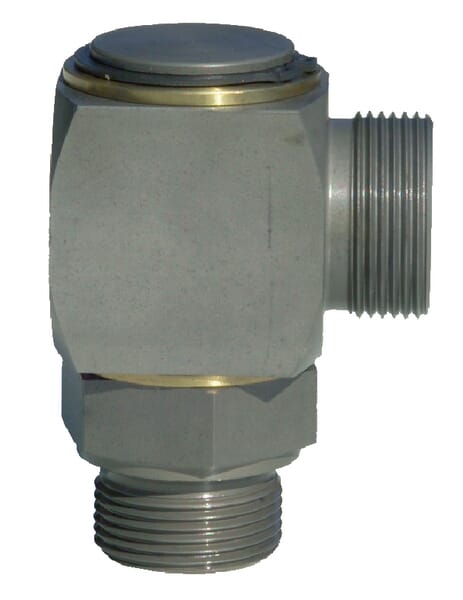

Voss Swivel banjo 6S R1/4 DGWEV6SR14
