Roll over image to zoom in · Click to see full view
£9.99
excl. VAT
£11.99 incl. VAT
£11.99
incl. VAT
£9.99 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

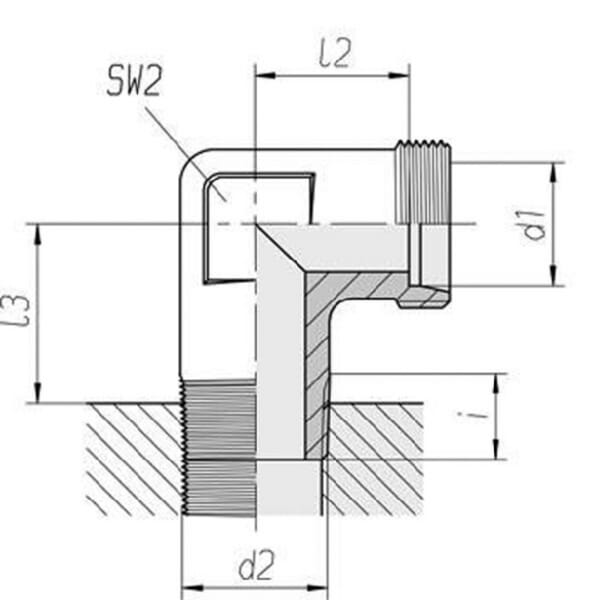

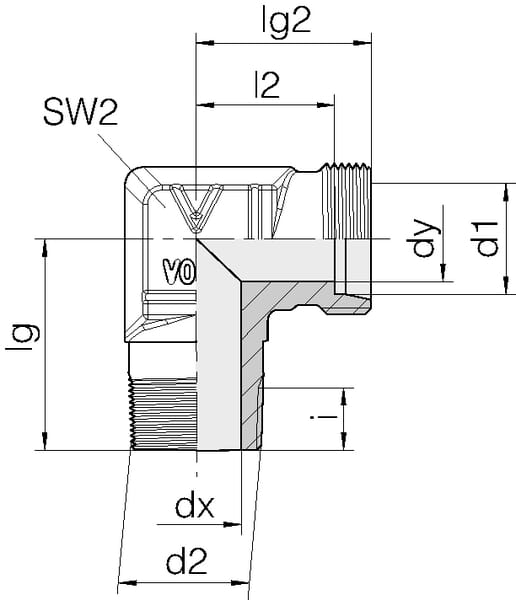

Product details
| Body height | 19 mm |
|---|---|
| Connection 1, thread diameter | M18 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | NPT |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 thread length | 12 mm |
| Connection no 1 wrench size | 22.0 mm |
| d2Connection no 1 diameter | 10 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Inside diameter | 7 mm |
| ISO standard | 228 |
| L2Connection 2, centre to end distance | 17.5 mm |
| L3Connection no 1 center to end distance | 20 mm |
| Max working pressure | 630 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| Series connection 1 | 10S |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 101 g |
| Dimensions | 40 × 35 × 20 mm |
| Dangerous goods | No |
