Roll over image to zoom in · Click to see full view
£14.88
excl. VAT
£17.86 incl. VAT
£17.86
incl. VAT
£14.88 excl. VAT
In stock
Expected to ship on Thursday 1 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

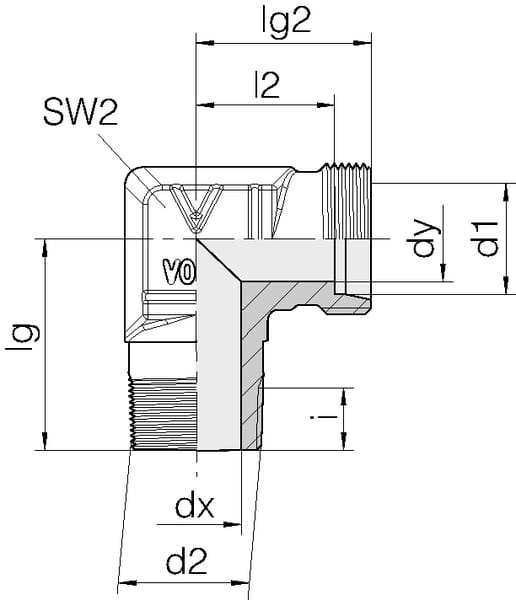

| Body height | 24 mm |
|---|---|
| Connection 1, thread diameter | 1/2 Inch |
| Connection 1, thread type | BSPT |
| Connection 2, centre to end distance | 33 mm |
| Connection 2, diameter | 12 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 24.0 mm |
| Connection no 1 center to end distance | 21 mm |
| Connection no 1 diameter | 10 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Includes | without separate nut and cutting ring |
| Inside diameter | 12 mm, 9 mm |
| ISO standard | 228 |

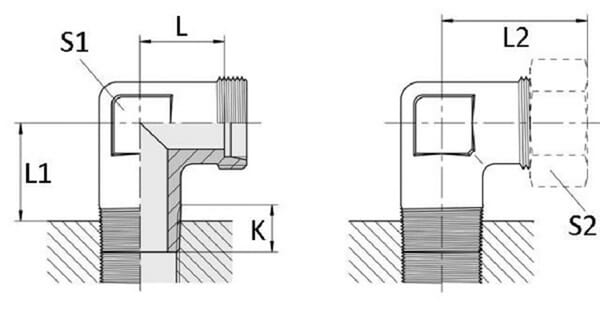

| L1Connection no 1 thread length | 19.8 mm |
| Max. tightening torque | 110 N·m |
| Max working pressure | 315 BAR |
| S2Connection no 1 wrench size | 22.0 mm |
| Series connection 1 | 12L |

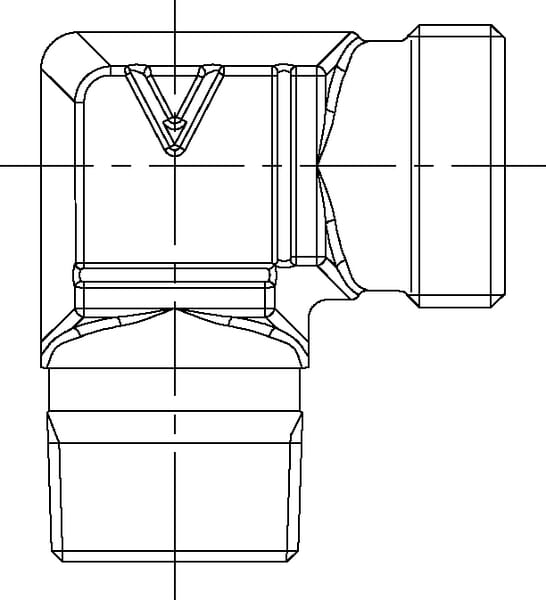

| Shape | Elbow 90° |
| Surface treatment | Galvanised |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 133 g |
| Dimensions | 52 × 45 × 25 mm |
| Dangerous goods | No |
