Roll over image to zoom in · Click to see full view
£16.75
excl. VAT
£20.10 incl. VAT
£20.10
incl. VAT
£16.75 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 19 mm |
|---|---|
| Cone angle | 24 ° |
| Connection 1, thread diameter | M22 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 15 mm |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection no 1 center to end distance | 36 mm, 46 mm |
| Connection no 1 diameter | 15 mm |
| Connection no 1 wrench size | 27.0 mm |
| DIN standard | 80750, 2401, 2353 |
| Hexagon nut size | 30 mm |
| Includes | Bulkhead coupling, Cutting rings, Nuts |
| Inside diameter | 12 mm |
| Material | Steel |
| Max working pressure | 315 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Bulkhead coupling |
| SAE standard | J1723, J1736 |
| Series connection 1 | 15L |
| Series connection 2 | 15L |
| Shape | Elbow 90° |
| Surface treatment | Nickel-plated, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 273 g |
| Dimensions | 173 × 119 × 8 mm |
| Dangerous goods | No |
You might also like
BPA000352693

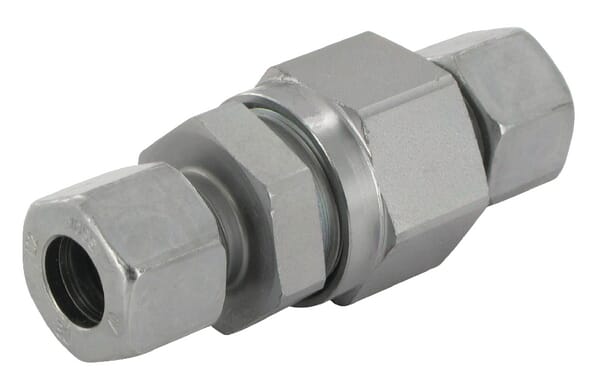

Voss Check valve 12L - 1 bar RVV12L
