Roll over image to zoom in · Click to see full view
£20.83
excl. VAT
£25.00 incl. VAT
£25.00
incl. VAT
£20.83 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M36 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 16 mm |
| Connection 2, thread diameter | M24 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 32.0 mm |
| Connection no 1 length | 39 mm |

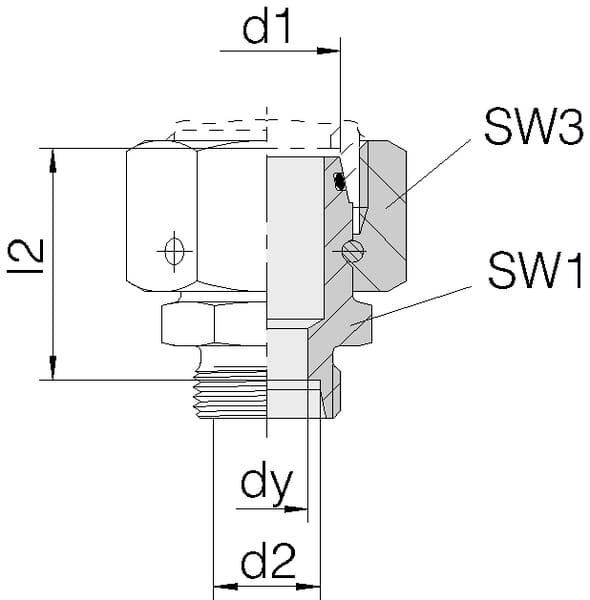

| d1Connection no 1 diameter | 25 mm |
| D2Series connection 1 | 16S |
| DIN standard | 2401 |
| dyInside diameter side 2 | 12 mm |

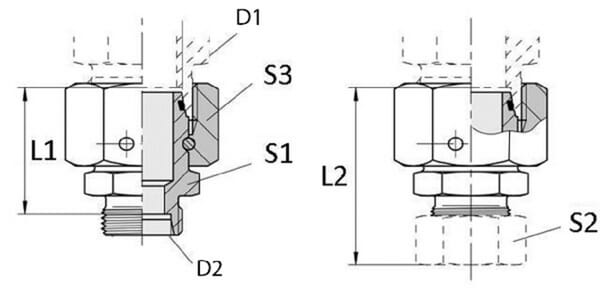

| L1Length | 39 mm |
| L2Total length | 39 mm |
| Long description | Application range:, Hydraulic hose, Hydraulic pipes, Properties:, Multiple corrosion resistance, Technical information:, Available in stainless steel on request, Viton seal available on reques |
| Max working pressure | 420 BAR |
| Product details | Multiple corrosion resistance, Viton seal available on request |
| Seal material | Nitrile rubber [NBR] |
| Shape | Straight |
| SW3Connection no 1 wrench size | 46.0 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
ES416S
Voss Cutting ring ES4 16S ES416S
£4.62 excl.
£5.54 incl.
ES425S
Voss Cutting ring ES4 25S ES425S
£9.79 excl.
£11.75 incl.
MV16S
Voss Swivel nut 16S MV16S
£2.06 excl.
£2.47 incl.
MV25S
Voss Swivel nut 25S MV25S
£6.25 excl.
£7.50 incl.
SV2S16S
Voss Cutting ring 16S SV2S16S
£1.01 excl.
£1.21 incl.
SV2S25S
Voss Cutting ring 25S SV2S25S
£1.76 excl.
£2.11 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 312 g |
| Dimensions | 51 × 46 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000374660
Voss T piece 15-12-15L TV151215L
£40.61 excl.
£48.73 incl.
In stock
Expected to ship on Monday 5 October
BPA000402346
Voss Angled screw connection WES16SM22
£14.82 excl.
£17.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000402354
Voss Elbow coupling 20S-3/4 BSPT WES20SR34
£30.84 excl.
£37.01 incl.
In stock
Expected to ship on Monday 5 October
BPA000288151
Voss Coupling 25S 1NPT GES25S1NPT
£11.77 excl.
£14.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000355225

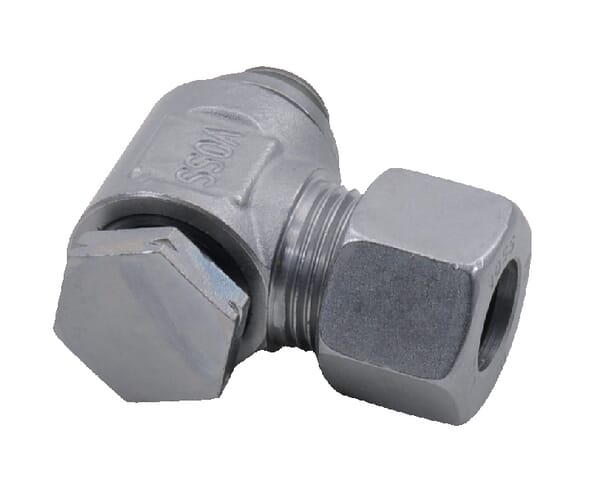

Voss Banjo coupling 22L R3/4 RSWV22LR34
