Roll over image to zoom in · Click to see full view
£7.07
excl. VAT
£8.48 incl. VAT
£8.48
incl. VAT
£7.07 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Connection 1, thread diameter | M16 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 8 mm |
| Connection 2, thread diameter | M14 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 diameter | 10 mm |
| DIN standard | 2401 |

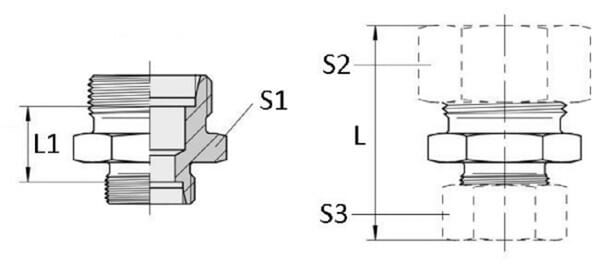

| L1Connections distance | 12 mm |
| LTotal length | 42 mm |
| Max working pressure | 500 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S3Connection no 1 wrench size | 19.0 mm |
| Series connection 1 | 8L |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 60 g |
| Dimensions | 47 × 21 × 21 mm |
| Dangerous goods | No |
You might also like
BPA000374711
Voss T piece 8L TV8L
£10.15 excl.
£12.18 incl.
In stock
Expected to ship on Monday 5 October
BPA000315644

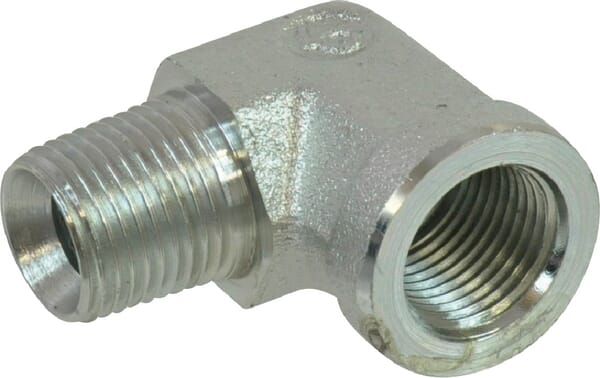

Voss Elbow out/in 3/8 BSPTx3/8 BSP MFV9006BTB
