Roll over image to zoom in · Click to see full view
£16.28
excl. VAT
£19.54 incl. VAT
£19.54
incl. VAT
£16.28 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

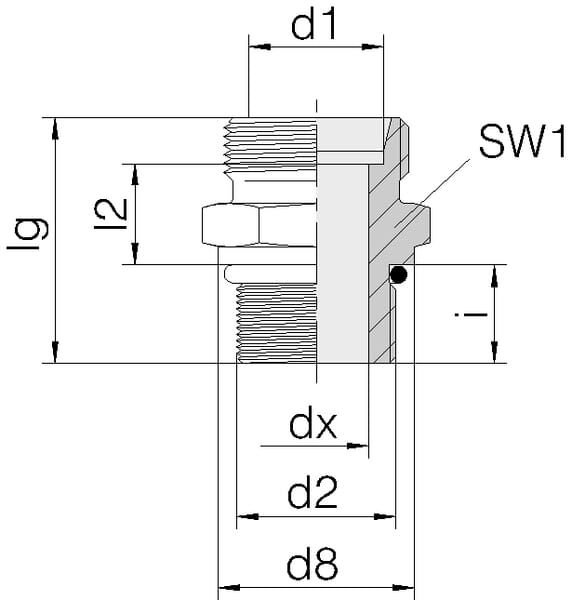

Product details
| Body height | 32 mm |
|---|---|
| Connection 1, thread diameter | 3/4 Inch |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 3/4 Inch |
| Connection 2, threads per inch | 16 |
| Connection 2, thread type | UNF |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection no 1 diameter | 14 mm |
| DIN standard | 2401, 2353, 3852 |
| Inside diameter | 11 mm |

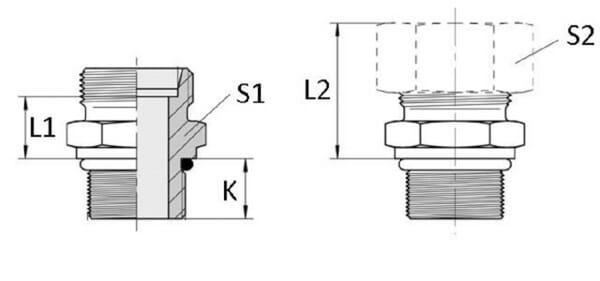

| KConnection no 1 thread length | 11.2 mm |
| L1Connection 2, centre to end distance | 14 mm |
| L2Connection no 1 center to end distance | 29 mm |
| Max. tightening torque | 55 N·m |
| Max working pressure | 400 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes, Viton seal available on request, SAE standard : 514 |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 24.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 15L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | 8716106970629 |
|---|---|
| Unit of measure | EA |
| Weight | 54 g |
| Dimensions | 35 × 25 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000355093
Voss Banjo coupling 12L M16 RSWS12LM16
£15.13 excl.
£18.16 incl.
In stock
Expected to ship on Friday 2 October
BPA000288251
Voss Coupling 42L M48 GES42LM48WD
£18.92 excl.
£22.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000232552
Voss Weldcoupling 15L ASS15L
£2.59 excl.
£3.11 incl.
In stock
Expected to ship on Friday 2 October
BPA000268173
Voss Adjustable male stud 14S ETV14S
£24.84 excl.
£29.81 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000402310
Voss Angled screw connection WES12L12NPT
£14.88 excl.
£17.86 incl.
In stock
Expected to ship on Friday 2 October

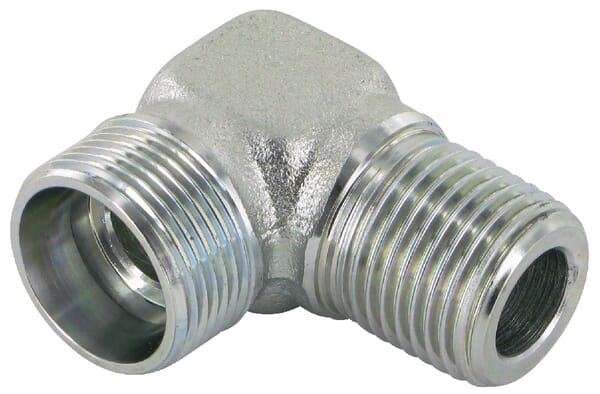

BPA000245394
