Roll over image to zoom in · Click to see full view
£22.85
excl. VAT
£27.42 incl. VAT
£27.42
incl. VAT
£22.85 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

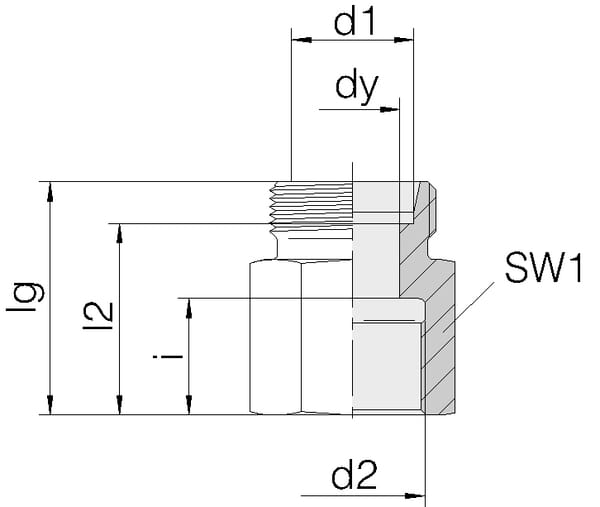

Product details
| Body height | 37 mm |
|---|---|
| Connection 1, thread diameter | M16 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 diameter | 10 mm |
| Connection no 1 length | 20 mm |
| Inside diameter | 8.77 mm |

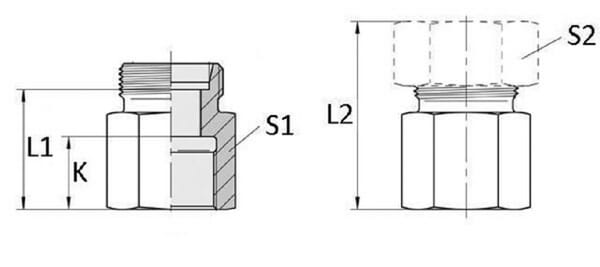

| L1Connection no 1 center to end distance | 45 mm |
| L2Connection 2, centre to end distance | 30 mm |
| Max working pressure | 315 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling |
| Pros | Reduced risk of leakage, Multiple corrosion resistance |
| S1Connection no 1 wrench size | 27.0 mm |
| Series connection 1 | 10L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 80 g |
| Dimensions | 37 × 30 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000288521
Voss Coupling 18L M22 GEV18LM22WD
£6.74 excl.
£8.09 incl.
In stock
Expected to ship on Friday 2 October
BPA000258190
Voss Coupling 10S R3/8 EGESD10SR38WD
£5.95 excl.
£7.14 incl.
In stock
Expected to ship on Friday 2 October
BPA000288593
Voss Coupling 4LL 1/8NPT GEV4LL18NPT
£3.14 excl.
£3.77 incl.
In stock
Expected to ship on Friday 2 October
BPA000253438

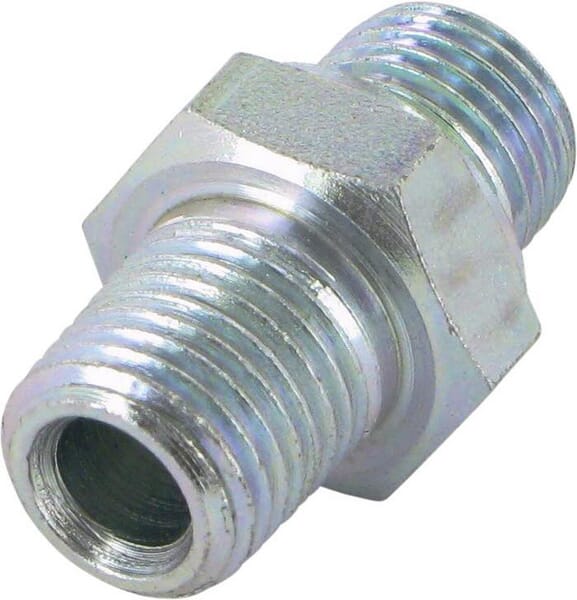

Voss Adaptor 1/4 BSP x1/4 BSPT DNBBT04
£1.50 excl.
£1.80 incl.
In stock
Expected to ship on Friday 2 October
BPA000360025

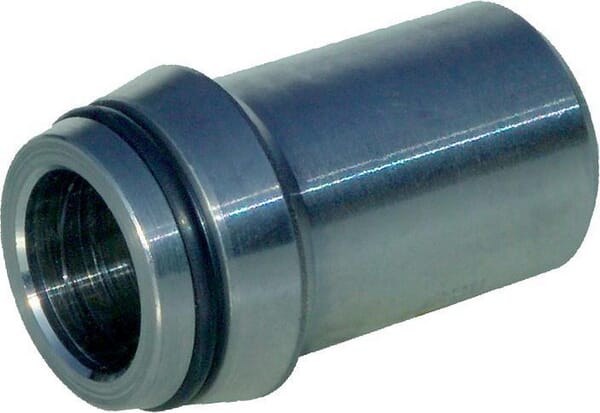

Voss Weldable stud 30mm x 4 SN304
