Roll over image to zoom in · Click to see full view
£6.74
excl. VAT
£8.09 incl. VAT
£8.09
incl. VAT
£6.74 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M26 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 32.0 mm |
| Connection no 1 diameter | 18 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |

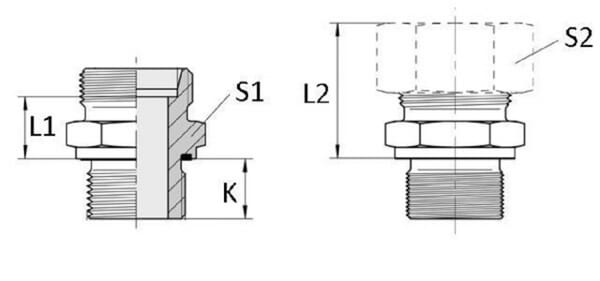

| KConnection no 1 thread length | 14 mm |
| L1Connection 2, centre to end distance | 14.5 mm |
| L2Connection no 1 center to end distance | 31 mm |
| Long description | Application range:, Hydraulic hose, Hydraulic pipes, Details:, 2S cutting ring, Properties:, Optimised cutting ring connection and functionality, Multiple corrosion resistance |
| Max working pressure | 400 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Connection no 1 wrench size | 27.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 18L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | 8719607005944 |
|---|---|
| Unit of measure | EA |
| Weight | 146 g |
| Dimensions | 50 × 38 × 38 mm |
| Dangerous goods | No |
You might also like
BPA000298871
Voss Elbow 3/4 JICx1/2 BSP KIBV1208OR
£18.95 excl.
£22.74 incl.
In stock
Expected to ship on Monday 5 October
BPA000355244
Voss Banjo coupling 6L-1/8" BSP RSWV6LR18
£13.26 excl.
£15.91 incl.
In stock
Expected to ship on Monday 5 October
BPA000288243
Voss Screw-on connection 38SR 1 1/4 GES38SR114WD
£23.72 excl.
£28.46 incl.
In stock
Expected to ship on Monday 5 October
BPA000374163
Voss Pre Assembly stud L12 TDCRPTL12MT
£96.68 excl.
£116.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000258513
Voss Swivel T piece union F-M-M 15L ELSD15L
£13.49 excl.
£16.19 incl.
In stock
Expected to ship on Monday 5 October
BPA000251368

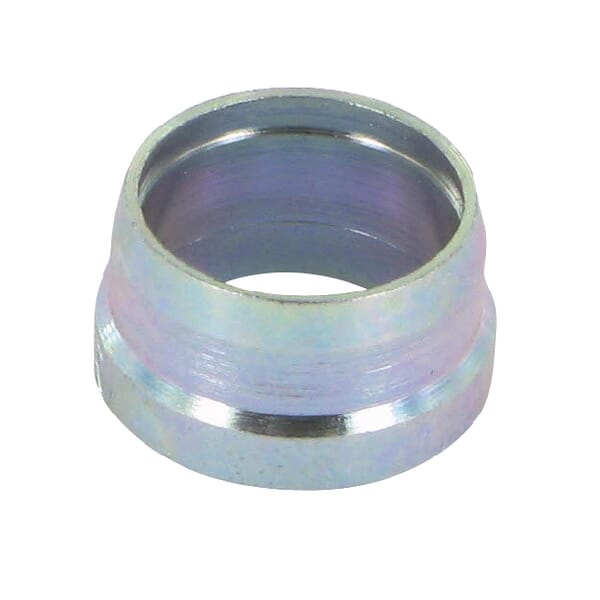

Voss Cutting ring 1-33.50 DAG33N
