Roll over image to zoom in · Click to see full view
£5.72
excl. VAT
£6.86 incl. VAT
£6.86
incl. VAT
£5.72 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M18 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 15 mm |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection no 1 length | 29 mm |
| d1Connection no 1 diameter | 15 mm |
| D2Series connection 1 | 12L |
| DIN standard | 2401 |
| dyInside diameter side 2 | 10 mm |
| L1Length | 29 mm |
| L2Total length | 29 mm |
| Long description | Application range:, Hydraulic hose, Hydraulic pipes, Properties:, Multiple corrosion resistance, Technical information:, Available in stainless steel on request, Viton seal available on reques |
| Max working pressure | 400 BAR |
| Product details | Multiple corrosion resistance, Viton seal available on request |
| Seal material | Nitrile rubber [NBR] |
| Series connection 2 | 15L |
| Shape | Straight |
| SW3Connection no 1 wrench size | 27.0 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
ES412L
Voss Cutting ring ES4 12LS ES412L
£2.94 excl.
£3.53 incl.
ES415L
Voss Cutting ring ES4 15L ES415L
£3.88 excl.
£4.66 incl.
MV12L
Voss Swivel nut 12L MV12L
£0.74 excl.
£0.89 incl.
MV15L
Voss Swivel nut 15L MV15L
£1.19 excl.
£1.43 incl.
SV2S12LS
Voss Cutting ring 12LS SV2S12LS
£0.51 excl.
£0.61 incl.
SV2S15L
Voss Cutting ring 15L SV2S15L
£0.65 excl.
£0.78 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 88 g |
| Dimensions | 40 × 25 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000258503
Voss Swivel T piece union F-M-M 10S ELSD10S
£14.28 excl.
£17.14 incl.
In stock
Expected to ship on Monday 5 October
BPA000288104
Voss Cut ring coupling 20S M30x2,0 - BSP 1" - Male GES20SR1
£21.55 excl.
£25.86 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000310367
Voss L coupling 15L R1/2 LES15LRK12
£37.54 excl.
£45.05 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000262819
Voss Cutting ring ES4 22L ES422L
£7.22 excl.
£8.66 incl.
In stock
Expected to ship on Monday 5 October
BPA000396295
Voss End Plug (Cutting Ring) 28L M36x2 VSK28L
£23.70 excl.
£28.44 incl.
In stock
Expected to ship on Monday 5 October

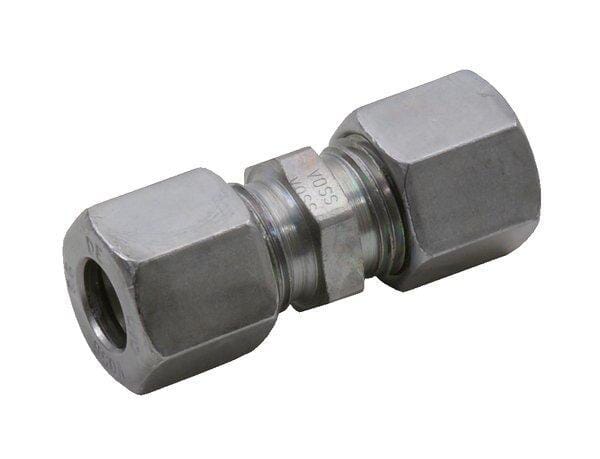

BPA000287466
