Roll over image to zoom in · Click to see full view
£4.18
excl. VAT
£5.02 incl. VAT
£5.02
incl. VAT
£4.18 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| ANSI standard | B1.20.1-1983. |
|---|---|
| Body height | 43.8 mm |
| Connection 1, thread diameter | 1/2 Inch |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | BSPT |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | NPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection no 1 diameter | 15 mm |
| DIN standard | 2353 |
| Inside diameter | 16 mm |
| KConnection no 1 thread length | 13.6 mm |
| Max. tightening torque | 110 N·m |
| Max working pressure | 400 BAR |
| Product details | 2S cutting ring |
| S1Connection no 1 wrench size | 30.0 mm |
| Series connection 1 | 16S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 92 g |
| Dimensions | 44 × 30 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000355276

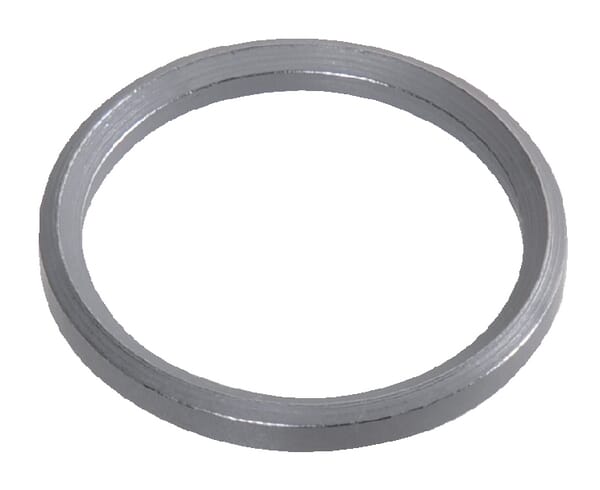

Voss RSWV seal ring metal R1/4 RSWV9VDKR14
