Roll over image to zoom in · Click to see full view
£18.96
excl. VAT
£22.75 incl. VAT
£22.75
incl. VAT
£18.96 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

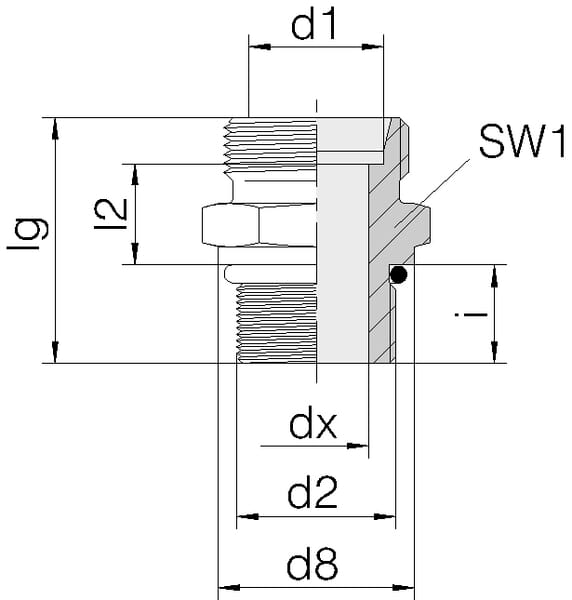

| Body height | 33 mm |
|---|---|
| Connection 1, thread diameter | 3/4 Inch |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | UNF |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 3/4 Inch |
| Connection 2, threads per inch | 16 |
| Connection 2, thread type | UNF |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 32.0 mm |
| Connection no 1 diameter | 18 mm |
| DIN standard | 2401, 2353, 3852 |
| Inside diameter | 15 mm |

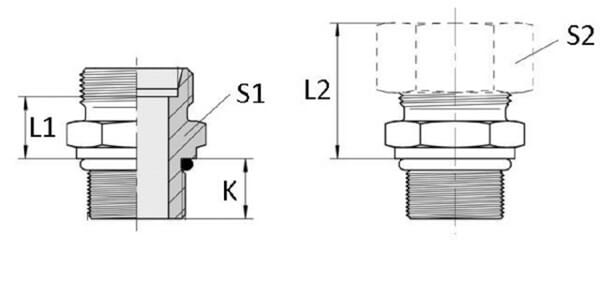

| KConnection no 1 thread length | 11.2 mm |
| L1Connection 2, centre to end distance | 14.5 mm |
| L2Connection no 1 center to end distance | 31 mm |
| Max. tightening torque | 55 N·m |
| Max working pressure | 400 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes, Viton seal available on request, SAE standard : 514 |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 27.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 18L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 66 g |
| Dimensions | 33 × 30 × 32 mm |
| Dangerous goods | No |
You might also like
BPA000288366
Voss Coupling 8L R3/8 GES8LR38WD
£2.90 excl.
£3.48 incl.
In stock
Expected to ship on Monday 5 October
BPA000288596
Voss Coupling 6L 1/4NPT GEV6L14NPT
£2.96 excl.
£3.55 incl.
In stock
Expected to ship on Monday 5 October
BPA000287358
Voss BulkHead Coupling 14S GSV14S
£20.02 excl.
£24.02 incl.
In stock
Expected to ship on Monday 5 October
BPA000288397

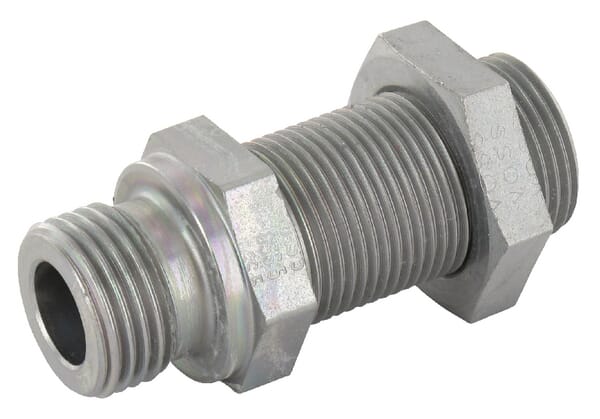

Voss Bulkhead loose 15L R1/2 GESS15LR12
