Roll over image to zoom in · Click to see full view
£20.02
excl. VAT
£24.02 incl. VAT
£24.02
incl. VAT
£20.02 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle | 24 ° |
|---|---|
| Connection 1, thread diameter | M22 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 14 mm |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection no 1 center to end distance | 32 mm |
| Connection no 1 diameter | 14 mm |
| Connections distance | 17 mm |
| DIN standard | 80750, 2401, 2353 |
| Includes | Coupling, Cutting rings, Gland nuts |
| Inside diameter | 10 mm |
| Material | Steel |
| Max working pressure | 630 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Connection no 1 wrench size | 27.0 mm |
| S2Hexagon nut size | 30 mm |
| Series connection 1 | 14S |
| Series connection 2 | 14S |
| Shape | Straight |
| Surface treatment | Nickel-plated, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 300 g |
| Dimensions | 90 × 30 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000287219
Voss Straight Adaptor (no M/R) 38S GS38S
£22.60 excl.
£27.12 incl.
In stock
Expected to ship on Monday 5 October
BPA000268124
Voss Adjustable male stud 12L ETSD12L
£12.96 excl.
£15.55 incl.
In stock
Expected to ship on Monday 5 October
BPA000287195

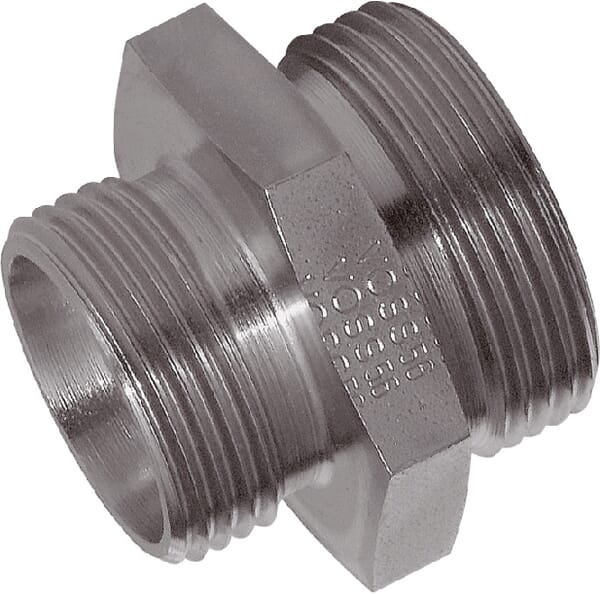

Voss Straight Adaptor (No M/R) 22L 18L GS2218L
