£13.49
excl. VAT
£16.19 incl. VAT
£16.19
incl. VAT
£13.49 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Connection 1, thread diameter | M22 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection 3, length | 46 |
| Connection 3, thread diameter | M22 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Includes | pre-assembled gland |
| Inside diameter | 12 mm, 10 mm |

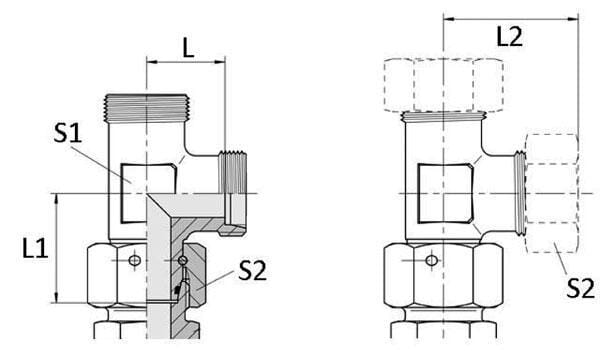

| L1Connection 2, centre to end distance | 32.5 mm |
| L2Connection no 1 center to end distance | 36 mm |
| LConnection 3 centre to end distance | 21 mm |
| Max working pressure | 400 BAR |
| Pipe diameter | 15 mm |
| Product details | Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Body height | 19 mm |
| S2Connection no 1 wrench size | 27.0 mm |
| Sealing ring inside diameter | 13 mm |
| Sealing ring thickness | 1.5 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | L |

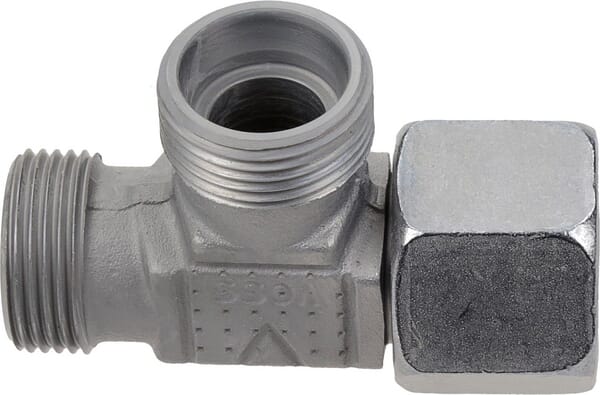

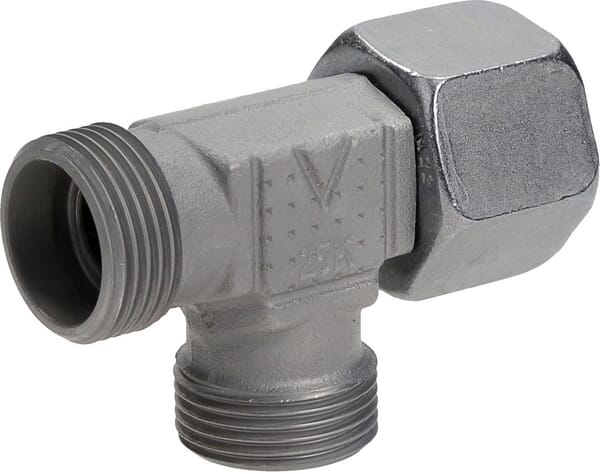

| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106786510 |
|---|---|
| Unit of measure | EA |
| Weight | 154 g |
| Dimensions | 63 × 40 × 26 mm |
| Dangerous goods | No |
You might also like

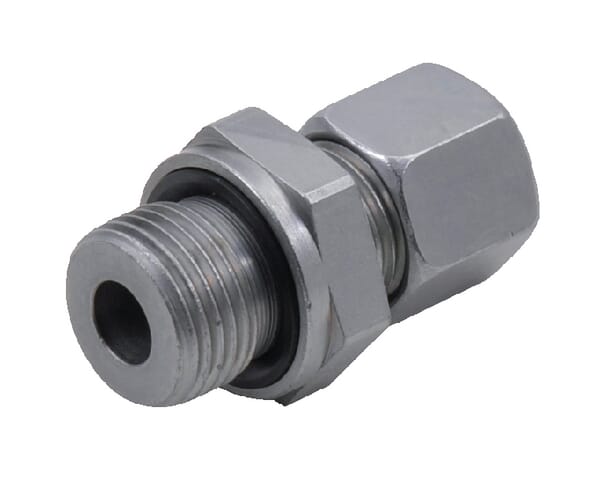

BPA000288423
Voss Coupling 10L M14 GEV10LM14WD
£3.46 excl.
£4.15 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000279932

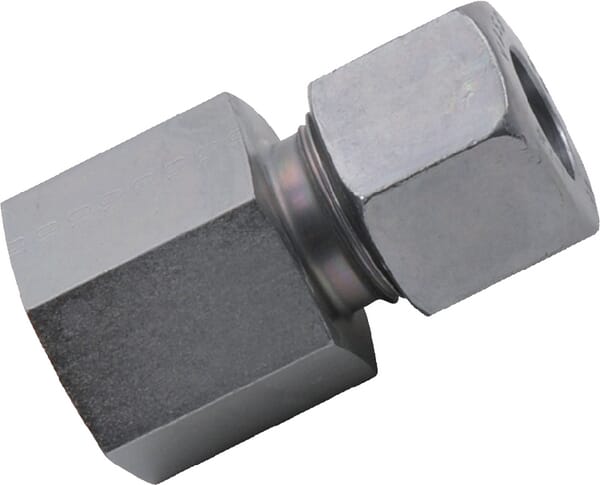

Voss Coupling 15L R1/2 GAV15LR12
£5.50 excl.
£6.60 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000219481
Voss Coupling AAG13x15.21 AAG131521
£9.92 excl.
£11.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000258263

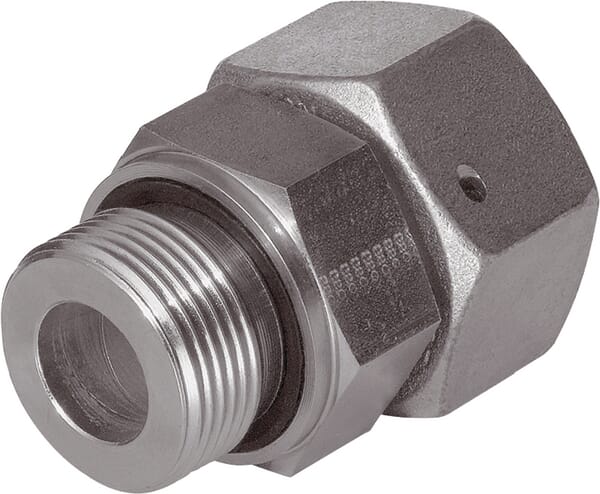

Voss Swivel connectors EGESD28LR34WD
£44.13 excl.
£52.96 incl.
In stock
Expected to ship on Tuesday 22 September

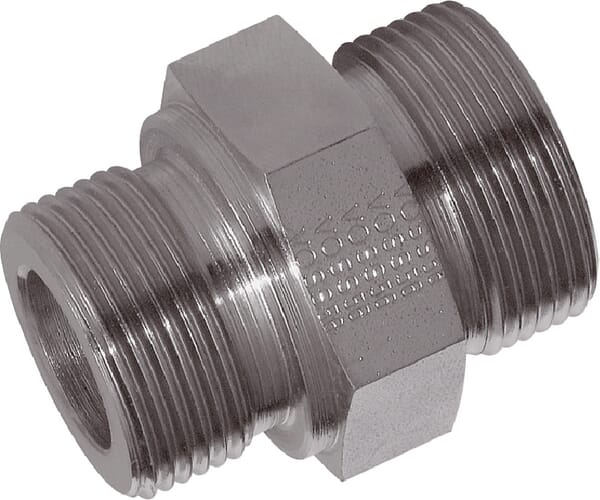

BPA000287870
Voss Coupling 12L M18 GES12LM18
£4.95 excl.
£5.94 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000355268

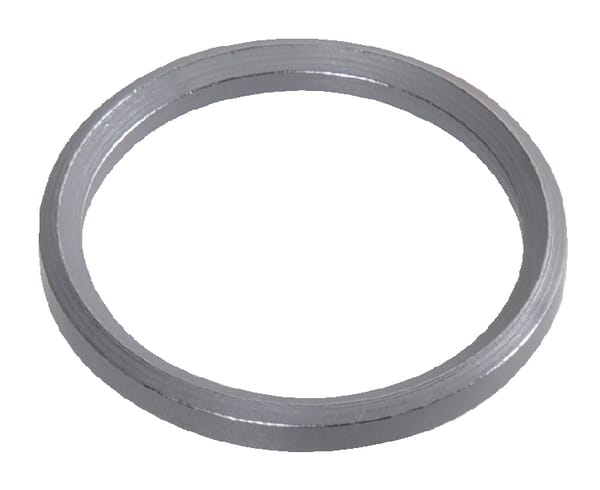

Voss RSWV seal ring metal M27x2 RSWV9VDKM272
