Roll over image to zoom in · Click to see full view
£5.29
excl. VAT
£6.35 incl. VAT
£6.35
incl. VAT
£5.29 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Body height | 40 mm |
|---|---|
| Connection 1, thread diameter | M30 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 16.5 mm |
| Connection 2, thread diameter | M26 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Seal ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 36.0 mm |
| Connection no 1 center to end distance | 33 mm |
| Connection no 1 diameter | 22 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| dxInside diameter | 18 mm |
| iConnection no 1 thread length | 16 mm |
| ISO standard | 228 |
| Max. tightening torque | 180 N·m |
| Max working pressure | 250 BAR |
| Product details | WD = Pre-assembled with flexible seal, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 22L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| SW1Connection no 1 wrench size | 32.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 103 g |
| Dimensions | 47 × 40 × 32 mm |
| Dangerous goods | No |
You might also like
BPA000287828
Voss Coupling 10S M16 GES10SM16WD
£2.95 excl.
£3.54 incl.
In stock
Expected to ship on Friday 2 October
BPA000306141
Voss Equal cross 12L KS12L
£30.56 excl.
£36.67 incl.
In stock
Expected to ship on Friday 2 October
BPA000225859
Voss Reducing adaptor with hex, 1-5/16JICx1-5/16JIC ADA21FJ
£34.90 excl.
£41.88 incl.
In stock
Expected to ship on Friday 2 October
BPA000402477
Voss Connecting flange 16S WFV16S35
£35.08 excl.
£42.10 incl.
In stock
Expected to ship on Friday 2 October
BPA000288449
Voss Coupling 12L 7/16UNF GEV12L716UNF
£29.88 excl.
£35.86 incl.
In stock
Expected to ship on Friday 2 October

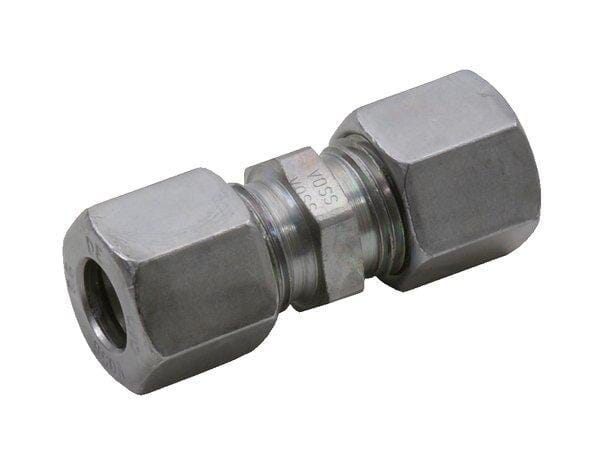

BPA000287454
