£19.65
excl. VAT
£23.58 incl. VAT
£23.58
incl. VAT
£19.65 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

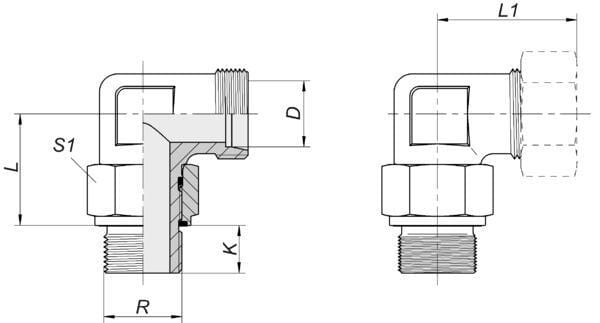

| Connection 1, thread diameter | M22 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 44 mm |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | BSPP |
| Connection 2, type | Seal ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection no 1 center to end distance | 28 mm |
| Connection no 1 diameter | 10 mm |
| Inside diameter | 12.5 mm |
| KConnection no 1 thread length | 14 mm |
| Material | Steel |
| Max. tightening torque | 105 N·m |
| Max working pressure | 250 BAR |
| Product details | Multiple corrosion resistance, Counter coupling with male thread, Adjustable direction, The adjusted direction is fixed by lock nut |
| Pros | Low risk of leakage |
| S1Connection no 1 wrench size | 27.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 15L |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 155 g |
| Dimensions | 55 × 45 × 33 mm |
| Dangerous goods | No |
