£9.82
excl. VAT
£11.78 incl. VAT
£11.78
incl. VAT
£9.82 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| ANSI standard | B1.20.1-1983. |
|---|---|
| Body height | 47 mm |
| Connection 1, thread diameter | 1 Inch |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1 Inch |
| Connection 2, thread type | NPT |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 41.0 mm |
| Connection no 1 diameter | 28 mm |
| DIN standard | 2353 |
| Inside diameter | 16 mm |
| KConnection no 1 thread length | 17.3 mm |
| Max. tightening torque | 265 N·m |
| Max working pressure | 160 BAR |
| Product details | 2S cutting ring |
| S1Connection no 1 wrench size | 41.0 mm |
| Series connection 1 | 28L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 175 g |
| Dimensions | 50 × 45 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000348316
Voss Coupling 12S 8S REDVD128S
£8.17 excl.
£9.80 incl.
In stock
Expected to ship on Friday 2 October
BPA000288434
Voss Coupling 10L R3/8 GEV10LR38
£3.56 excl.
£4.27 incl.
In stock
Expected to ship on Friday 2 October
BPA000310395
Voss L coupling 8L R1/4 LEV8LRK14
£18.82 excl.
£22.58 incl.
In stock
Expected to ship on Friday 2 October
BPA000287213
Voss Straight Adaptor (No M/R) 35L 28L GS3528L
£34.24 excl.
£41.09 incl.
In stock
Expected to ship on Friday 2 October
Free shipping
BPA000355237
Voss Banjo coupling 42L R1-1/2 RSWV42LR112WD
£150.78 excl.
£180.94 incl.
In stock
Expected to ship on Friday 2 October
BPA000316642

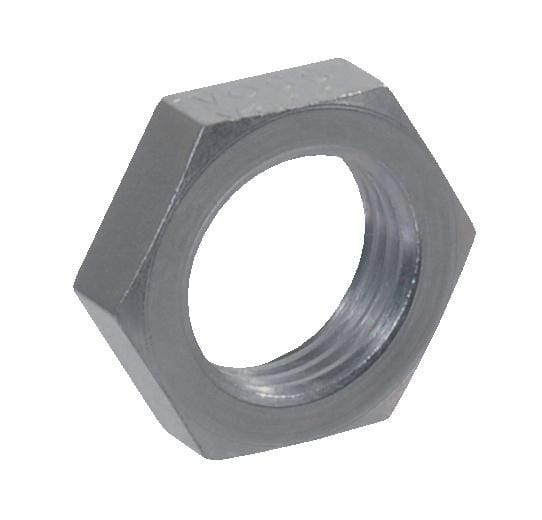

Voss Locknut M24x1.50 steel MSV2415
