Roll over image to zoom in · Click to see full view
£28.76
excl. VAT
£34.51 incl. VAT
£34.51
incl. VAT
£28.76 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

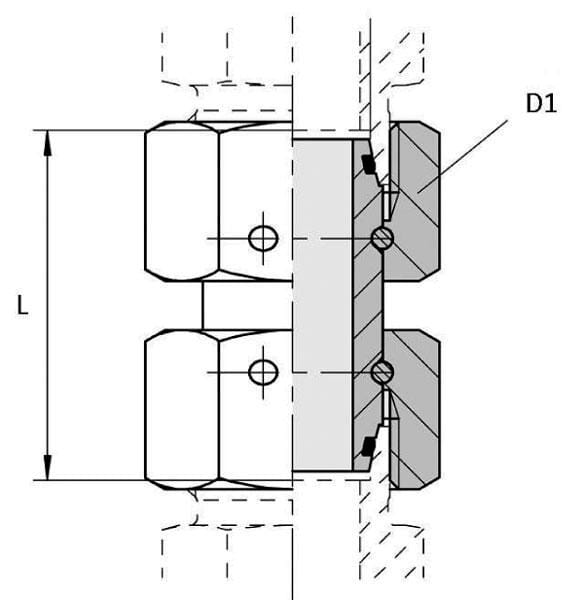

Product details
| Connection 1, thread diameter | M36 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 28 mm |
| Connection 2, thread diameter | M36 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 41.0 mm |
| Connection centre to insert distance | 51.5 mm |
| Connection no 1 diameter | 28 mm |
| Connection no 1 length | 51.5 mm |
| Connection no 1 wrench size | 41.0 mm |
| DIN standard | 2401 |
| Includes | Body, Swivel nuts, Sealing cone with O-ring |
| Inside diameter side 2 | 22.2 mm |
| LLength | 51.5 mm |
| Max working pressure | 250 BAR |
| Product details | Multiple corrosion resistance thanks to standard galvanising, Similar in design to the GVO but for higher pressures, Viton seal available on request |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 28L |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Total length | 51.5 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 318 g |
| Dimensions | 55 × 48 × 48 mm |
| Dangerous goods | No |
