Roll over image to zoom in · Click to see full view
£27.28
excl. VAT
£32.74 incl. VAT
£32.74
incl. VAT
£27.28 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

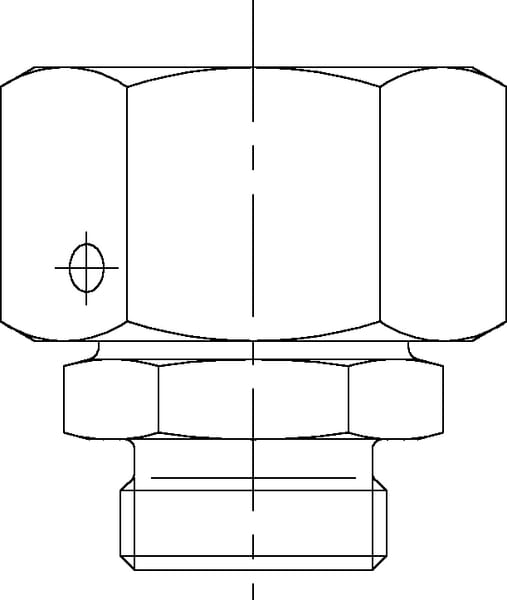

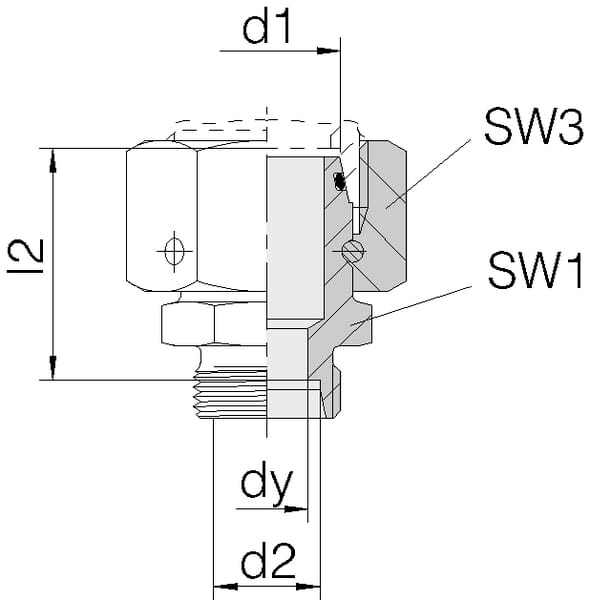

Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M42 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 25 mm |
| Connection 2, thread diameter | M36 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 41.0 mm |
| Connection no 1 length | 45 mm |
| d1Connection no 1 diameter | 30 mm |
| D2Series connection 1 | 25S |
| DIN standard | 2401 |
| dyInside diameter side 2 | 20 mm |
| L1Length | 45 mm |
| L2Total length | 45 mm |
| Max working pressure | 420 BAR |
| Product details | Multiple corrosion resistance, Viton seal available on request |
| Seal material | Nitrile rubber [NBR] |
| Shape | Straight |
| SW3Connection no 1 wrench size | 50.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 447 g |
| Dimensions | 60 × 60 × 57 mm |
| Dangerous goods | No |
You might also like
BPA000374692
Voss T piece 25S TV25S
£58.80 excl.
£70.56 incl.
In stock
Expected to ship on Friday 2 October
BPA000258576
Voss Adjustable male stud 8L ELVD8L
£13.22 excl.
£15.86 incl.
In stock
Expected to ship on Friday 2 October
BPA000258233
Voss Coupling 16S - 3/8 BSP EGESD16SR38WD
£12.00 excl.
£14.40 incl.
In stock
Expected to ship on Friday 2 October
BPA000263318
Voss Coupling 16S ESV16S
£32.29 excl.
£38.75 incl.
In stock
Expected to ship on Friday 2 October
Free shipping
BPA000352704

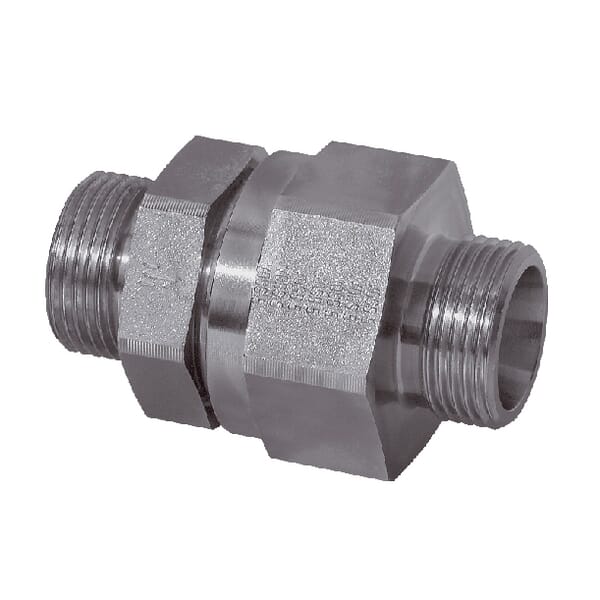

Voss Check valve 30S - 1 bar RVV30S
