Roll over image to zoom in · Click to see full view
£27.10
excl. VAT
£32.52 incl. VAT
£32.52
incl. VAT
£27.10 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M42 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 30 mm |
| Connection 2, thread diameter | M42 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection centre to insert distance | 73 mm |
| Connection no 1 diameter | 30 mm |
| Connection no 1 wrench size | 50.0 mm |
| Connections distance | 73 mm |

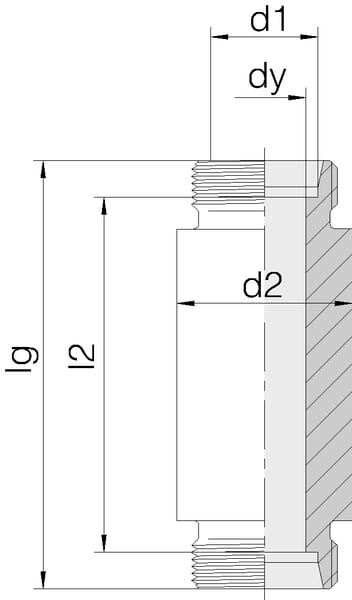

| d2Outside diameter | 50 mm |
| Inside diameter side 2 | 25 mm |
| lgTotal length | 100 mm |
| Max working pressure | 400 BAR |
| Product details | Weld-on bulkhead coupling, Pre-assembled with O-ring, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| Series connection 1 | 30S |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 881 g |
| Dimensions | 101 × 50 × 51 mm |
| Dangerous goods | No |
You might also like
BPA000365428

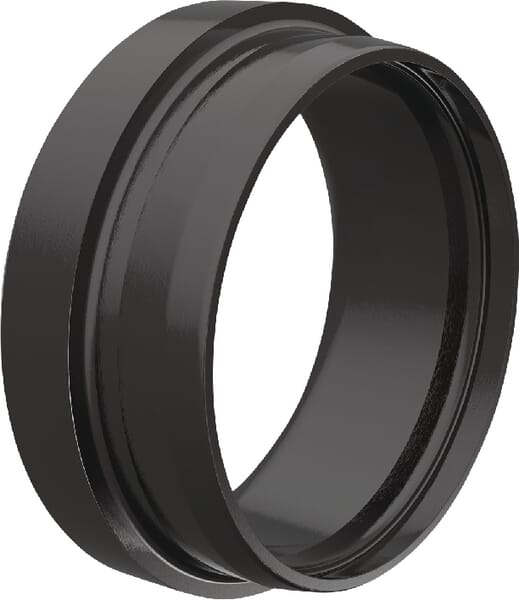

Voss Cutting ring 6LL SR06LL
£0.49 excl.
£0.59 incl.
In stock
Expected to ship on Monday 5 October
BPA000287354
Voss BulkHead Coupling 10L GSV10L
£7.73 excl.
£9.28 incl.
In stock
Expected to ship on Monday 5 October
BPA000348334
Voss Coupling 20S 16S REDVD2016S
£15.48 excl.
£18.58 incl.
In stock
Expected to ship on Monday 5 October
BPA000287191
Voss Straight Adaptor (no M/R) 20S GS20S
£6.73 excl.
£8.08 incl.
In stock
Expected to ship on Monday 5 October
BPA000288472
Voss Coupling 12S M18 GEV12SM18
£4.56 excl.
£5.47 incl.
In stock
Expected to ship on Monday 5 October
BPA000268288

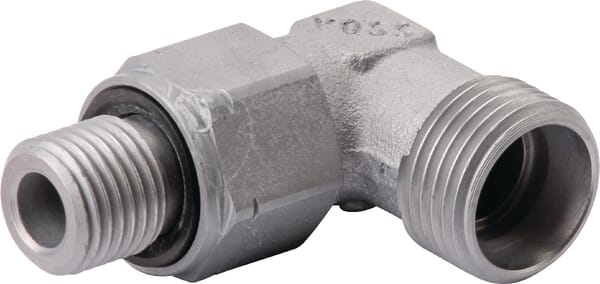

Voss Coupling+locking nut 12-1/2 EWSC12LR12WD
