Roll over image to zoom in · Click to see full view
£34.97
excl. VAT
£41.96 incl. VAT
£41.96
incl. VAT
£34.97 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Connection 1, thread diameter | M42 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 30 mm |
| Connection 2, thread diameter | M42 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 46.0 mm |
| Connection no 1 diameter | 30 mm |
| DIN standard | 2401, 2353 |
| Includes | Coupling, Cutting rings, Gland nuts |

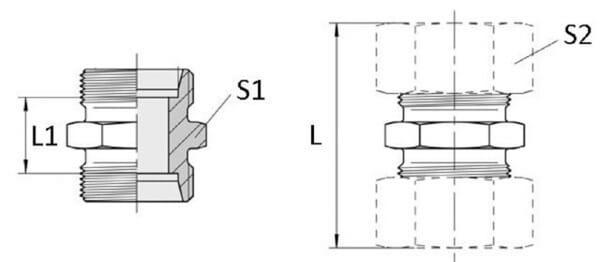

| L1Connections distance | 27 mm |
| LTotal length | 80 mm |
| Max working pressure | 420 BAR |
| Product details | 2S cutting ring, Multiple corrosion resistance |
| Pros | Optimal cutting ring connection and functionality |
| S1Connection no 1 wrench size | 50.0 mm |
| Series connection 1 | 30S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 815 g |
| Dimensions | 172 × 115 × 19 mm |
| Dangerous goods | No |
You might also like
BPA000279072
Voss Adaptor F/M 7/8 JIC x 1/2 BSP FMUBV1408WD
£11.34 excl.
£13.61 incl.
In stock
Expected to ship on Monday 5 October
BPA000263275

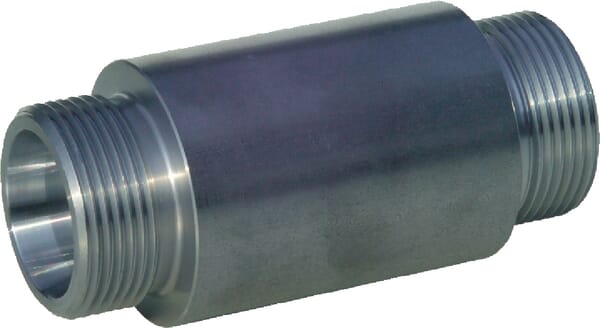

Voss Coupling ESS 8L ESS8L
