Product details
| Body height | 43 mm |
|---|---|
| Connection 1, thread diameter | 1-5/8 Inch |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | NPT |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-5/8 Inch |
| Connection 2, threads per inch | 12 |
| Connection 2, thread type | UNF |
| Connection 2, type | Seal ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection no 1 diameter | 35 mm |
| DIN standard | 2401, 2353, 3852 |
| Inside diameter | 35 mm |

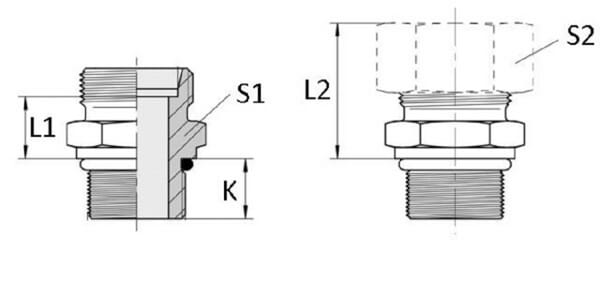

| KConnection no 1 thread length | 15 mm |
| L1Connection 2, centre to end distance | 17.5 mm |
| L2Connection no 1 center to end distance | 39 mm |
| Max. tightening torque | 220 N·m |
| Max working pressure | 250 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes, Viton seal available on request, SAE standard : 514 |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 50.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 35L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |

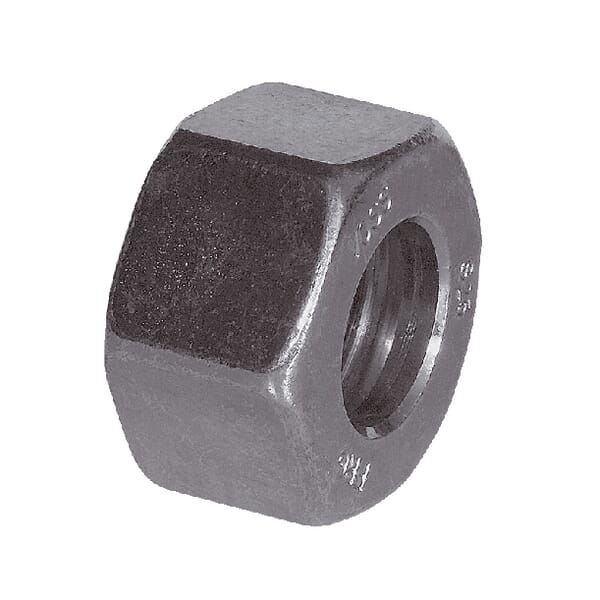

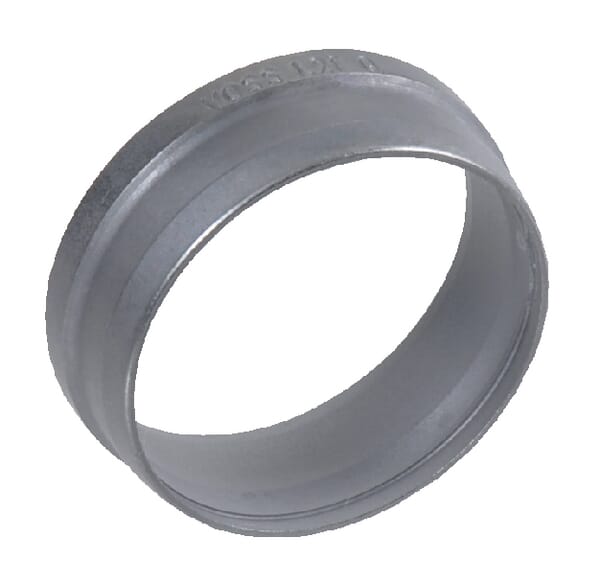

Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 253 g |
| Dimensions | 62 × 53 × 44 mm |
