Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M45 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 18 mm |
| Connection 2, thread diameter | M26 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 41.0 mm |
| Connection no 1 length | 38.5 mm |
| d1Connection no 1 diameter | 35 mm |
| D2Series connection 1 | 18L |
| DIN standard | 2401 |
| dyInside diameter side 2 | 15 mm |
| L1Length | 38.5 mm |
| L2Total length | 38.5 mm |
| Max working pressure | 250 BAR |
| Product details | Multiple corrosion resistance, Viton seal available on request |
| Seal material | Nitrile rubber [NBR] |
| Shape | Straight |
| SW3Connection no 1 wrench size | 50.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 323 g |
| Dimensions | 55 × 55 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000288173
Voss Coupling 28L M33 GES28LM33
£8.00 excl.
£9.60 incl.
In stock
Expected to ship on Monday 5 October
BPA000402462
Voss Elbow Coupling 6S R1/4 WEV6SRK14
£8.21 excl.
£9.85 incl.
In stock
Expected to ship on Monday 5 October
BPA000262812
Voss Cutting ring ES4 10LS ES410LS
£2.78 excl.
£3.34 incl.
In stock
Expected to ship on Monday 5 October
Free shipping
BPA000355150
Voss Angled banjo coupling RSWS30SR114WD
£111.20 excl.
£133.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000279064

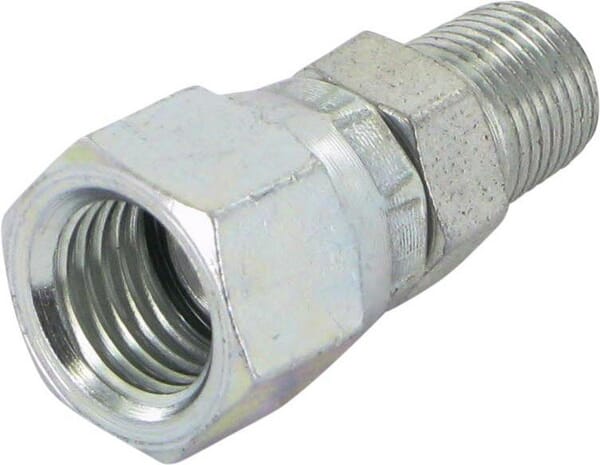

Voss Reducing adaptor with hex, 1-1/16 JICx3/4 BSPT FMUBTV1712
