£53.18
excl. VAT
£63.82 incl. VAT
£63.82
incl. VAT
£53.18 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 10 mm |
| Connection 2, length | 63 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection no 1 diameter | 10 mm |
| Connection no 1 length | 47 mm |
| D2Series connection 1 | 10S |
| DIN standard | 2401 |
| Max working pressure | 400 BAR |
| Product details | Pre-assembled with O-ring, Multiple corrosion resistance |
| Pros | Assembly with end stop, Reduced risk of leakage |
| S2Connection no 1 wrench size | 60.0 mm |
| Seal material | FKM |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 629 g |
| Dimensions | 66 × 60 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000355159

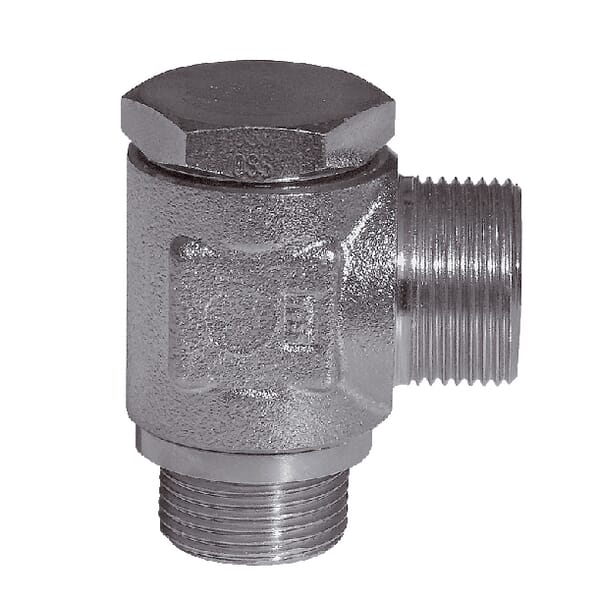

Voss Angled banjo coupling RSWS6LR14WD
£15.86 excl.
£19.03 incl.
In stock
Expected to ship on Friday 2 October
BPA000288427
Voss Coupling 10L M22 GEV10LM22
£12.11 excl.
£14.53 incl.
In stock
Expected to ship on Friday 2 October
BPA000268364
Voss Adj. stud (pre-assembled) 10S EWVD10S
£12.16 excl.
£14.59 incl.
In stock
Expected to ship on Friday 2 October
BPA000288236
Voss Adaptor 38S-R1 1/2 GES38SR112ACH60
£21.04 excl.
£25.25 incl.
In stock
Expected to ship on Friday 2 October
BPA000298873

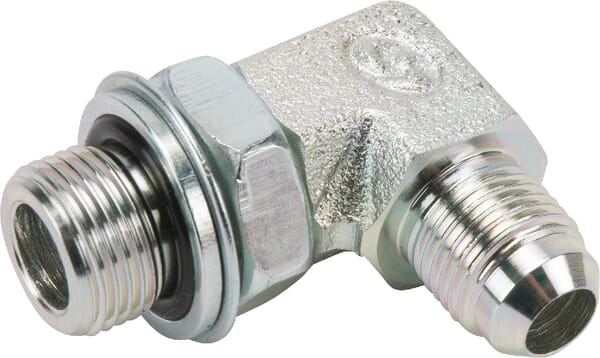

Voss Elbow 7/8 JICx1/2 BSP KIBV1408OR
