Roll over image to zoom in · Click to see full view
£45.01
excl. VAT
£54.01 incl. VAT
£54.01
incl. VAT
£45.01 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 16 mm |
| Connection 2, thread diameter | M24 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection no 1 length | 48 mm |
| d1Connection no 1 diameter | 38 mm |
| D2Series connection 1 | 16S |
| DIN standard | 2401 |
| dyInside diameter side 2 | 12 mm |
| L1Length | 48 mm |
| L2Total length | 48 mm |
| Max working pressure | 420 BAR |
| Product details | Multiple corrosion resistance, Viton seal available on request |
| Seal material | Nitrile rubber [NBR] |
| Shape | Straight |
| SW3Connection no 1 wrench size | 60.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 590 g |
| Dimensions | 69 × 60 × 57 mm |
| Dangerous goods | No |
You might also like
BPA000288309
Voss Coupling 6S M12 GES6SM12WD
£2.22 excl.
£2.66 incl.
In stock
Expected to ship on Friday 2 October
BPA000396306
Voss End plug M10 VSM10WD
£2.62 excl.
£3.14 incl.
In stock
Expected to ship on Friday 2 October
BPA000279883
Voss Coupling 22L M26 GAS22LM26
£17.19 excl.
£20.63 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000402415
Voss Elbow Coupling 12L 3/8NPT WEV12L38NPT
£9.55 excl.
£11.46 incl.
In stock
Expected to ship on Friday 2 October
BPA000232679
Voss Weld-on coupling ASV 18L-90' ASV18L90
£17.71 excl.
£21.25 incl.
In stock
Expected to ship on Friday 2 October

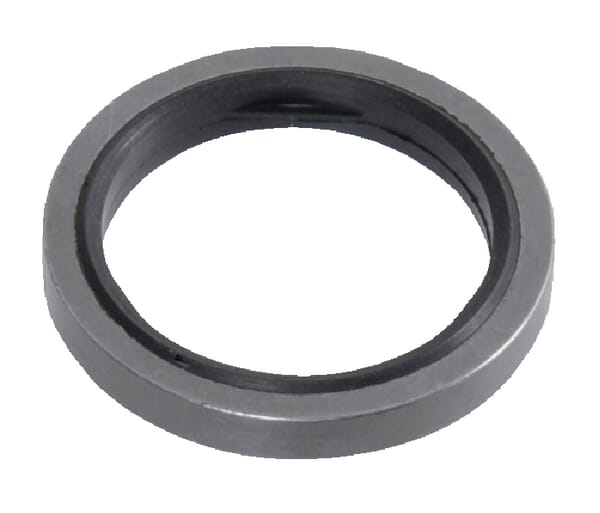

BPA000355281
