Roll over image to zoom in · Click to see full view
£64.93
excl. VAT
£77.92 incl. VAT
£77.92
incl. VAT
£64.93 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 25 mm |
| Connection 2, length | 72.5 mm |
| Connection 2, thread diameter | M36 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 46.0 mm |
| Connection no 1 diameter | 25 mm |
| Connection no 1 length | 48.5 mm |
| D2Series connection 1 | 25S |
| DIN standard | 2401 |
| Max working pressure | 400 BAR |
| Product details | Pre-assembled with O-ring, Multiple corrosion resistance |
| Pros | Assembly with end stop, Reduced risk of leakage |
| S2Connection no 1 wrench size | 60.0 mm |
| Seal material | FKM |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 816 g |
| Dimensions | 75 × 70 × 70 mm |
| Dangerous goods | No |
You might also like
BPA000258554
Voss Adjustable male stud 18L ELV18L
£26.45 excl.
£31.74 incl.
In stock
Expected to ship on Friday 2 October
BPA000310366
Voss L coupling 12L R3/8 LES12LRK38
£22.37 excl.
£26.84 incl.
In stock
Expected to ship on Friday 2 October
BPA000348170
Voss 10S 8S coupling REDSD108S
£7.54 excl.
£9.05 incl.
In stock
Expected to ship on Friday 2 October
BPA000262809
Voss Cutting ring ES4 6LS ES406L
£1.50 excl.
£1.80 incl.
In stock
Expected to ship on Friday 2 October
BPA000376059

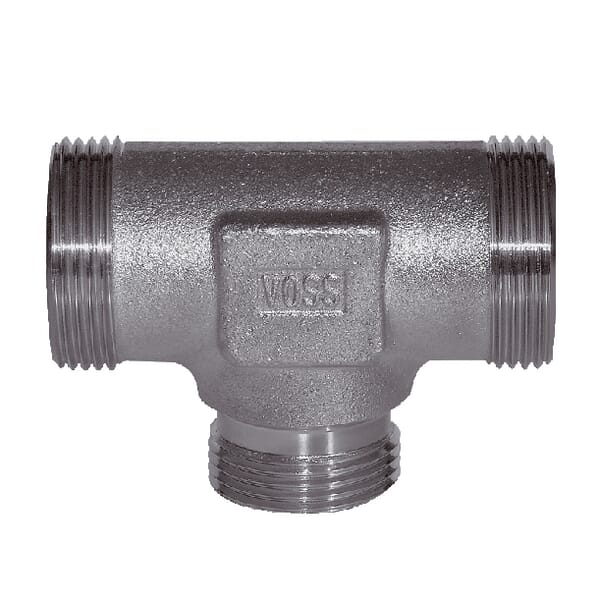

Voss T piece 15-15-8L TS15158L
£75.08 excl.
£90.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000355115

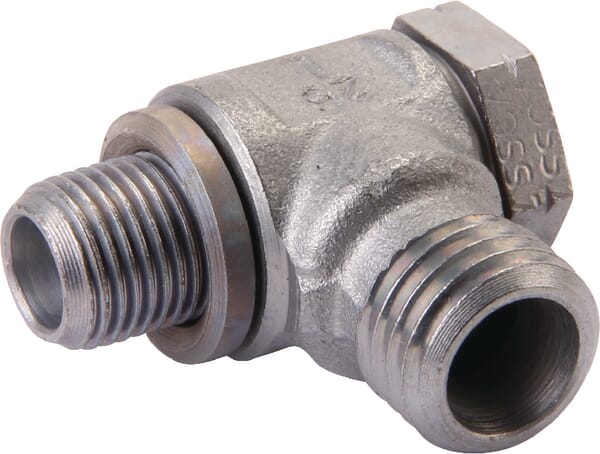

Voss Angled banjo coupling RSWS12SR38
