£71.07
excl. VAT
£85.28 incl. VAT
£85.28
incl. VAT
£71.07 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Additional info | Compression nuts and olives sold seperately |
|---|---|
| Cone angle | 24 ° |
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M52 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 60.0 mm |

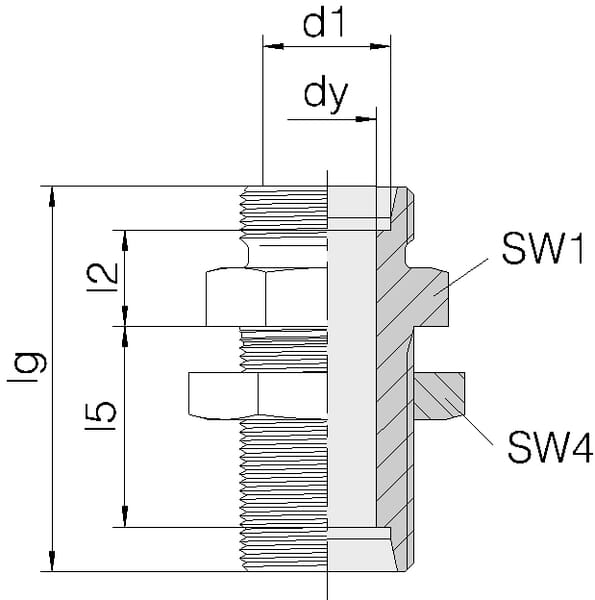

| Connection no 1 diameter | 38 mm |
| d1Connection 2, diameter | 38 mm |
| DIN standard | 80750, 2401, 2353 |
| dyInside diameter | 32 mm |
| i2Connection 2, length | 68 mm |
| IgTotal length | 91 mm |
| Material | Steel |
| Max working pressure | 400 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| Series connection 1 | 38S |
| Series connection 2 | 38S |
| Shape | Straight |
| Surface treatment | Nickel-plated, Zinc |
| SW4Connection no 1 wrench size | 60.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1082 g |
| Dimensions | 91 × 73 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000268142
Voss Adjustable male stud 22L ETSD22L
£31.17 excl.
£37.40 incl.
In stock
Expected to ship on Friday 2 October
BPA000396357
Voss Plug+union nut 8S VSMV8S
£1.09 excl.
£1.31 incl.
In stock
Expected to ship on Friday 2 October
BPA000348336
Voss Coupling 20S 8S REDVD208S
£18.05 excl.
£21.66 incl.
In stock
Expected to ship on Friday 2 October
BPA000258213

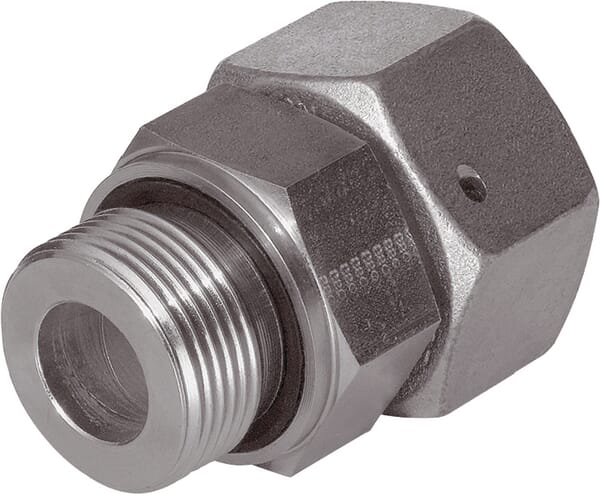

Voss Coupling 14S R1/2 EGESD14SR12WD
