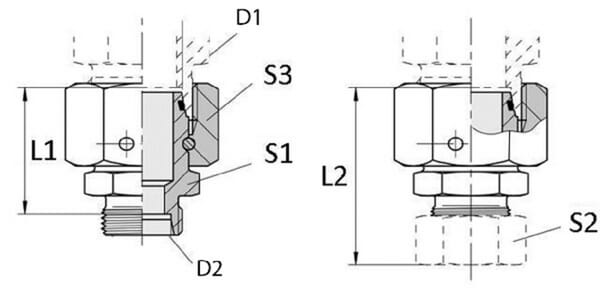

Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 30 mm |
| Connection 2, length | 75.5 mm |
| Connection 2, thread diameter | M42 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection no 1 diameter | 30 mm |
| Connection no 1 length | 49 mm |
| D2Series connection 1 | 30S |
| DIN standard | 2401 |
| Max working pressure | 400 BAR |
| Product details | Pre-assembled with O-ring, Multiple corrosion resistance |
| Pros | Assembly with end stop, Reduced risk of leakage |
| S2Connection no 1 wrench size | 60.0 mm |
| Seal material | FKM |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 904 g |
| Dimensions | 80 × 70 × 70 mm |
| Dangerous goods | No |
You might also like
BPA000355111
Voss Banjo coupling 12L R3/8 RSWS12LR38WD
£19.51 excl.
£23.41 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000258175
Voss Coupling 10L 1/4NPT EGESD10L14NPT
£21.39 excl.
£25.67 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000396063
Voss Nipple male/female 3/8 BSP thread x3/8 BSP VRBTB06
£4.92 excl.
£5.90 incl.
In stock
Expected to ship on Monday 5 October
BPA000348309
Voss Coupling 10L 8L REDVD108L
£6.46 excl.
£7.75 incl.
In stock
Expected to ship on Friday 2 October

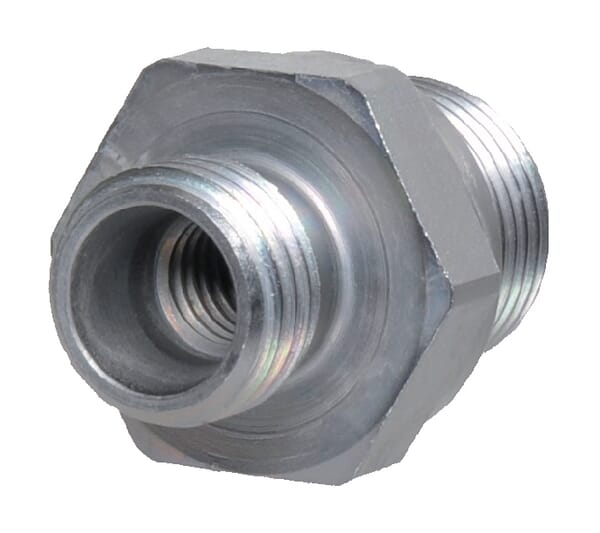

BPA000288368
