Roll over image to zoom in · Click to see full view
£15.13
excl. VAT
£18.16 incl. VAT
£18.16
incl. VAT
£15.13 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | 1/2 Inch |
|---|---|
| Connection 1, thread type | Metric |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 14 mm |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type - male/female | Female |

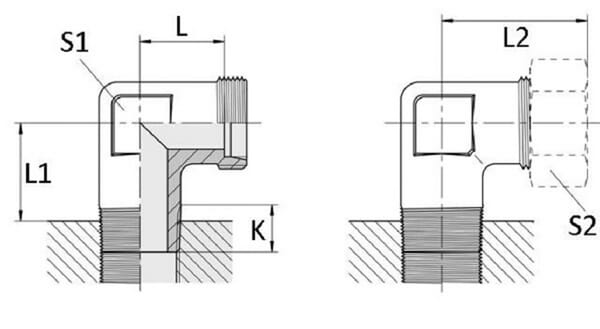

| Connection no 1 center to end distance | 22 mm |
| Connection no 1 diameter | 14 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Includes | Coupling, Cutting ring, Gland nuts |
| ISO standard | 228 |
| L1Connection no 1 thread length | 12 mm |
| Max working pressure | 630 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| S2Connection no 1 wrench size | 27.0 mm |
| Series connection 1 | 14S |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 173 g |
| Dimensions | 57 × 56 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000288428
Voss Coupling 10L M22 GEV10LM22WD
£5.43 excl.
£6.52 incl.
In stock
Expected to ship on Friday 2 October
BPA000374660
Voss T piece 15-12-15L TV151215L
£40.61 excl.
£48.73 incl.
In stock
Expected to ship on Friday 2 October
BPA000288418
Voss Coupling 10L 3/8NPT GEV10L38NPT
£3.86 excl.
£4.63 incl.
In stock
Expected to ship on Friday 2 October

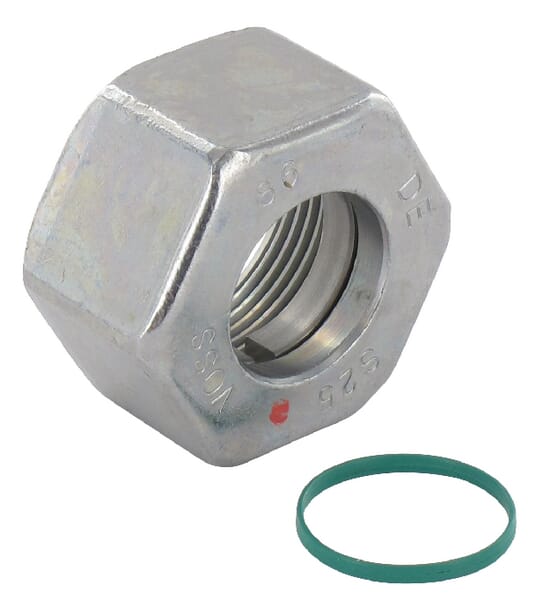

BPA000316873
Voss Vossform Swivel nut 25S MVF25SWD
£13.30 excl.
£15.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288613
Voss Coupling 6S M12 GEV6SM12WD
£3.26 excl.
£3.91 incl.
In stock
Expected to ship on Friday 2 October

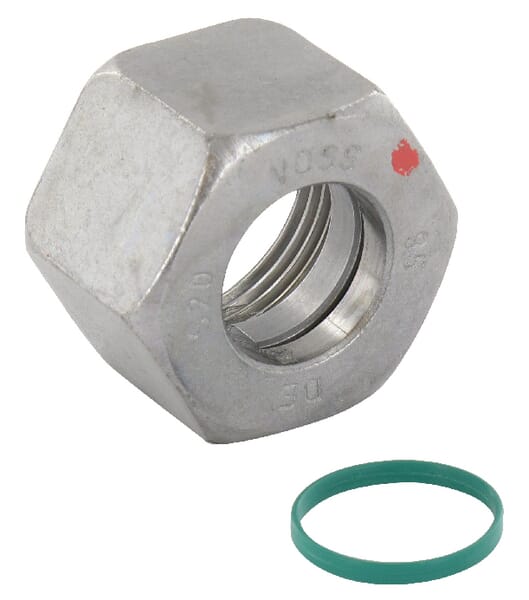

BPA000316871
